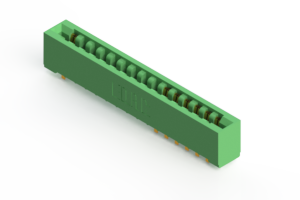

EDAC 307030558201 Card Edge Connector
The EDAC 307-030-558-201 is a versatile card edge connector ideal for applications requiring robust and reliable board-to-board connections. Its 0.156" pitch and thermoplastic polyester insulator body provide excellent insulation and mechanical stability. The connector offers a variety of mounting options and contact termination choices, including P.C. tail, wire hole, wire wrap, and 90° bends, catering to diverse design requirements. It is RoHS compliant and UL certified, ensuring adherence to industry standards. This connector is commonly used in industrial automation, telecommunications equipment, and other electronic devices where secure and high-performance card edge connections are essential.
EDAC 307030558201 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
Buy the 307-030-558-201 EDAC Card Edge Connector | myMectronic
Purchase the EDAC 307-030-558-201 Card Edge Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 307030558201?
You can click on the BUY or RFQ button to purchase 307030558201 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 307030558201?
You can download the 307030558201 datasheet or visit the EDAC website for support.
Who is the manufacturer of 307030558201?
EDAC
