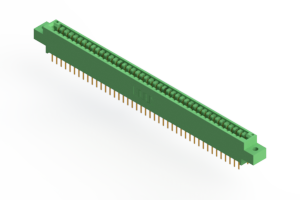

EDAC 346086520802 Card Edge Connector
This card edge connector features a 0.125-inch pitch, accommodating 86 contacts with durable copper alloy contacts, gold and tin plating ensuring reliable connections. It accepts 0.062-inch thick P.C. boards and offers multiple mounting options, including mounting holes with 0.128-inch diameter. The insulator is made from UL 94V-0 thermoplastic polyester, capable of withstanding temperatures from -40°C to +105°C. The connector's high profile insulator stands 0.600 inches tall, with an operating voltage of 1500 V AC rms between contacts, and a maximum contact resistance of 10 milliohms.
EDAC 346086520802 Card Edge Connector Specifications:
- Contact Spacing: 0.125 inches (3.18 mm)
- Number of Contacts: 86
- P.C. Tail Size: 0.025 inches Square (0.64 mm²)
- Tail Length: 0.175 inches (4.45 mm)
- Mounting Hole Diameter: 0.128 inches (3.25 mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Temperature Range: -40°C to +105°C
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: Not specified in OCR (research externally if needed)
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1500 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Height: 0.600 inches (15.24 mm)
Buy the EDAC Series 346 Series Card Edge Connector: 346086520802
Purchase the EDAC 346086520802 card edge connector online today to ensure your electronic assembly has reliable connections, durable construction, and versatile mounting options. With a 0.125-inch pitch, 86 contacts, and high-quality copper alloy contacts plated with gold and tin, this connector meets RoHS standards and withstands temperatures from -40°C to +105°C. Its high profile insulator offers easy installation, and the mounting holes facilitate secure attachment, making it ideal for precise and durable electronic applications.
Buy EDAC 346086520802 now and experience unmatched reliability and performance with versatile mounting options and high voltage capacity.
