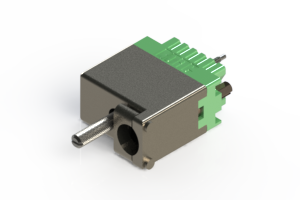

EDAC 516020000261 Rack and Panel Connector
The EDAC 516 series rack and panel connectors are designed for versatile applications requiring robust and reliable connections. These connectors feature 0.150" contact spacing and a hermaphroditic mating design, simplifying mating and unmating with actuating screws. They offer a range of termination options, including crimp, P.C. tail, wire hole, and wire wrap, catering to diverse wiring needs. The connectors are RoHS compliant and suitable for a wide range of industrial applications where secure and reliable connections are essential.
EDAC 516020000261 Rack and Panel Connector Specifications:
- Contact Spacing: 0.150" (3.81mm)
- Row Spacing: 0.130" (3.30mm) or 0.150" (3.81mm)
- Contact Sizes: 20, 38, 56, 90 and 120
- Contact Termination Options: Crimp, P.C. tail, wire hole, wire wrap
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
- Color: Green or Grey (For 120 Pin Only)
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel over entire contact
- Current Rating: 8.5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate Only)
- Insertion Withdrawal Force: 2 to 16 oz (0.56 to 4.45N) per contact position
Buy the 516-020-000-261 EDAC Rack and Panel Connector | myMectronic
Purchase the EDAC 516-020-000-261 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 516020000261?
You can click on the BUY or RFQ button to purchase 516020000261 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516020000261?
You can download the 516020000261 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516020000261?
EDAC
