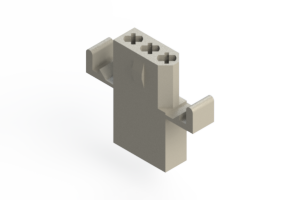

EDAC 556003000102 Rack and Panel Connector
The EDAC 556 series rack and panel connectors are designed for secure and reliable connections in various industrial and commercial applications. These connectors feature 0.156" contact spacing and utilize an hermaphroditic contact mating design, ensuring consistent and dependable performance. Termination options include crimp, P.C. tail, wire hole, wire wrap, and taper tail, providing flexibility in assembly and integration. The connectors are RoHS compliant and offer a wide range of contact configurations to meet specific application requirements. Tools are available for contact installation, removal, and crimping, simplifying the assembly process. The insulator design prevents improper mating, enhancing reliability and safety.
EDAC 556003000102 Rack and Panel Connector Specifications:
- Insulator Material: Nylon UL 94V-0, White Color
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel over entire contact
- Current Rating: 8.5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 2 to 16 oz (0.56 to 4.45N) per contact position
- Withdrawal Force: 2 to 16 oz (0.56 to 4.45N) per contact position
- Contact Spacing: 0.156" (3.96mm)
