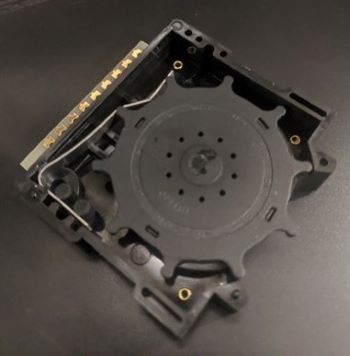

EECO 2206MS Thumbwheel Switch
EECO’s 2000 Series thumbwheel switches are ideal for demanding industrial control applications. Their large size ensures easy operation, even with gloved hands, and the optional internal O-ring seal provides protection in harsh environments. The switch’s design allows for both PCB termination and direct wiring, offering flexibility in installation. Available with various options like lighted indicators, custom legends, and diode provisions, the 2000 Series delivers high reliability for heavy-duty industrial use. It is covered by EECO’s one-year warranty and is RoHS compliant.
EECO 2206MS Thumbwheel Switch Specifications:
- No. of Switching Positions: 8, 10, 12, 16
- Life: Minimum 1,000,000 Detents
- Tangential Operating Force: 6-18 Oz
- Weight: 0.8 Oz
- Maximum Electrical Current, Non-Switching: 3A Per Common Terminal
- Maximum Rated Load, Switching: 125 mA at 28 VDC or 115 VAC
- Minimum Switching Load: 0.01 mA at 0.02 VDC
- Contact Resistance (Initial): 100 m Maximum
- Contact Resistance (After Life): 200 m Maximum
- Insulation Resistance: 1,000 M Minimum
- Dielectric Withstanding Voltage: 1000 VAC (RMS) Single Pole Models
- Dielectric Withstanding Voltage (Double Pole Models): 500 VAC (RMS)
- Operating Temperature: -400C To+750C
- Storage Temperature: -650C To+1000C
- Seal: Optional O-Ring
- Plastic: Polycarbonate per Federal Spec LP-393A
- Metals: Corrosion Resistant
- Circuit Board-Material: 0.063" Glass Epoxy
- Plating: Gold Over Nickel Plating
- Terminals: Copper Alloy, Plated for Soldering
- Contacts: Bifurcated Copper Alloy, Gold Over Nickel Plating
- O-Ring: Buna-N
Buy the 2206MS EECO Thumbwheel Switch | myMectronic
Purchase the EECO 2206MS Thumbwheel Switch securely and reliably online.
Buy Now
