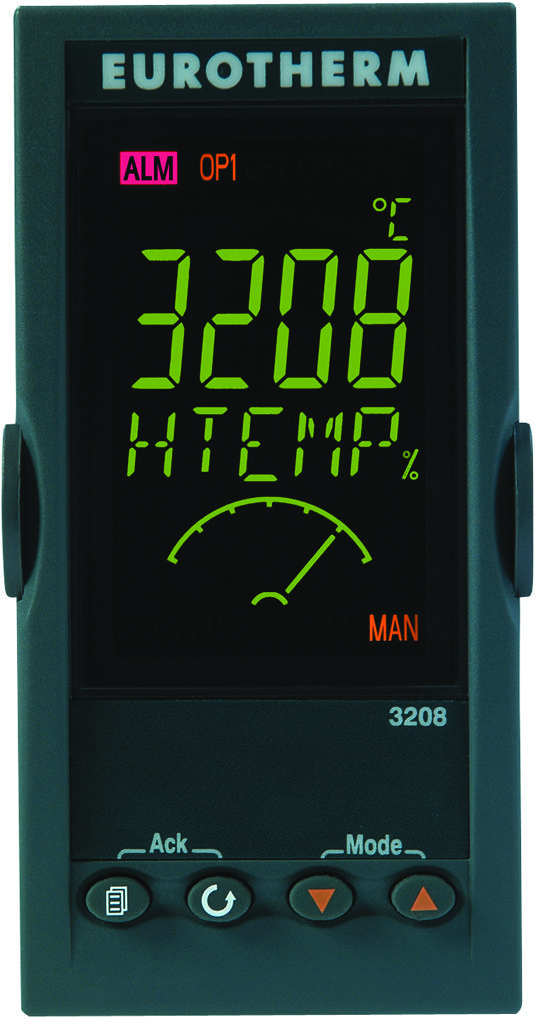

EUROTHERM CONTROLS 3208CCVHLRRXXXXXGENGEN 3200 Series Temperature Controller
The EUROTHERM 3200 series controllers provide innovative and precise control of temperature and other process variables. Featuring a simple 'Quick Start' code for easy configuration and a user-friendly interface with scrolling text messages in multiple languages, these controllers are designed for ease of use. Advanced features include heater failure detection, programmable recipes, remote setpoint capabilities, and Modbus communication for integration with other systems. The 3200 series is suitable for a wide range of industrial applications requiring accurate and reliable process control.
EUROTHERM CONTROLS 3208CCVHLRRXXXXXGENGEN 3200 Series Temperature Controller Specifications:
- Operating Temperature: 0 to 55°C
- Storage Temperature: -10 to 70°C
- Humidity: 5 to 90% RH non-condensing
- Panel Sealing: IP65, Nema 4X
- Shock: BS EN61010
- Vibration: 2g peak, 10 to 150Hz
- Altitude: <2000 metres
- EMC: BS EN61326
- Electrical Safety: Installation cat. II; Pollution degree 2
- Impulse Voltage: 2500V (for 230V mains)
- Panel Mounting (3216): 1/16 DIN
- Panel Mounting (3208): 1/8 DIN
- Panel Mounting (3204): 1/4 DIN
- Panel Mounting (32h8): 1/8 DIN, horizontal
- Weight (3216): 250g
- Weight (3208): 350g
- Weight (3204): 420g
- Weight (32h8): 350g
- Panel Cut-out (3216): 45W x 45Hmm
- Panel Cut-out (3208): 45W x 92Hmm
- Panel Cut-out (3204): 92W x 92Hmm
- Panel Cut-out (32h8): 92W x 45Hmm
- Panel Depth: 90mm
- Display Type: LCD TN with backlight
- Main PV Display: 4 digits, green
- Lower Display (3216, 3208, 3204): 5 character starburst, green
- Lower Display (32h8): 9 character starburst, green
- Power (3216): 100 to 240Vac, 48 to 62 Hz, max 6W or 24Vac/24Vdc
- Power (3208/h8/04): 100 to 240Vac, 48 to 62 Hz, max 8W or 24Vac/24Vdc
- Approvals: CE, cUL listed, Gost, DIN 3440
- Process Variable Input Calibration Accuracy: <±0.25% of reading ±1LSD
- Sample Rate: 4Hz (250ms)
- Resolution: <0.5μV
- Linearisation Accuracy: < 0.1% of reading
- Drift with Temperature: <50ppm (typical)
