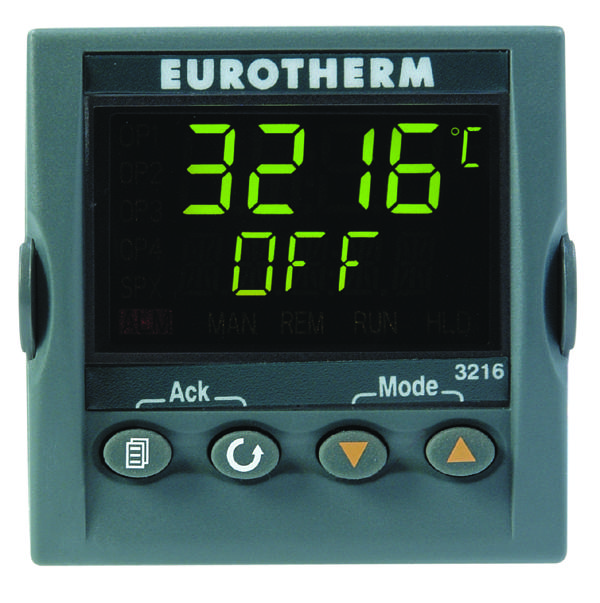

EUROTHERM CONTROLS 3216CCVHRRXXRXXXGENGEN Process Controller
The 3216/CC/VH/RRXX/R/XXX/G/ENG/EN is a high-precision temperature and process controller tailored for industrial and thermal management applications. It features a user-friendly configuration system utilizing a simple 'quick start' code for rapid setup of sensor type, measurement range, control parameters, and alarms, enabling quick deployment out of the box. The controller supports multiple languages including English, German, French, Spanish, and Italian with accessible scrolling text descriptions. Advanced functions include heater current monitoring via a current transformer, programmable heat profiles with an 8-segment programmer, heater fault detection, Modbus and analogue retransmission, remote setpoints, and helpful on-screen guidance. Its robust design meets high safety standards with shock resistance (BS EN61010), IP65, and NEMA 4X sealing, making it ideal for process automation, temperature regulation, and industrial control environments.
EUROTHERM CONTROLS 3216CCVHRRXXRXXXGENGEN Process Controller Specifications:
- Temperature/Process Control: High accuracy with <40.25% of reading calibration precision
- Input Types: Thermocouple types B, J, K, L, N, R, S, T, C, custom, Resistance thermometers Pt100 (3-wire)
- Measurement Range: Thermocouple Varies, RTD -10°C to 80°C, configurable via external divider
- Display: 4-digit PV, green backlit LCD; lower display options include 5 or 9 character starburst in green
- Panel Mounting: 1/16 DIN for 3216, 1/8 DIN for 3208/h8/04, 1/4 DIN for 3204, all with respective cut-out dimensions
- Environmental: Operation at -10°C to 55°C, humidity 5–90% RH, IP65/NEMA 4X sealing, suitable for corrosive/explosive atmospheres
- Power: 100–240VAC ±15%, 48–62Hz, max 6-8W; or 24VDC with similar ratings depending on model
- Communication: Supports EIA232 and EIA485 with Modbus RTU Master/Broadcast capability, external configuration adaptor available
- Control Outputs: Logic, relay (Form C), Triac; analogue (0-20mA/4-20mA); configurable for heating/cooling
- Setpoint and Profile Programming: 8-segment heat treatment profiles, programmable via PC using iTools software
- Timer Functions: Configurable as interval, delay, or soft start for hot runner control
- Heater Monitoring: Current transformer input (0-50mA RMS), partial load, open circuit, and SSR faults detection
- Safety & Certification: Complies with BS EN61010, BS EN61326 EMI standards, CE, CUL, NEMA 4X/IP65 rated
- Additional Features: Custom text messaging, remote setpoint input, adjustable Dwell, Ramp, alarms, and event outputs
Buy the Buy Eurotherm Temperature Controller Part Number 3216CCVHRRXXRXXXGENG Online
Experience reliable and precise temperature regulation with the Eurotherm process controller. Featuring advanced heater current monitoring, customizable profiles, multiple language options, and seamless Modbus communication, it is ideal for industrial automation. Its robust design ensures durability in harsh environments, backed by IP65/NEMA 4X sealing and safety standards. Quickly configure settings with intuitive 'quick start' codes and PC-based iTools software, enabling rapid deployment. Perfect for temperature control, thermal processing, and industrial applications requiring high accuracy and flexible communication options.
Get Eurotherm 3216CCVHRRXXRXXXGENG today—precision temperature control with heater monitoring and advanced communication features.
