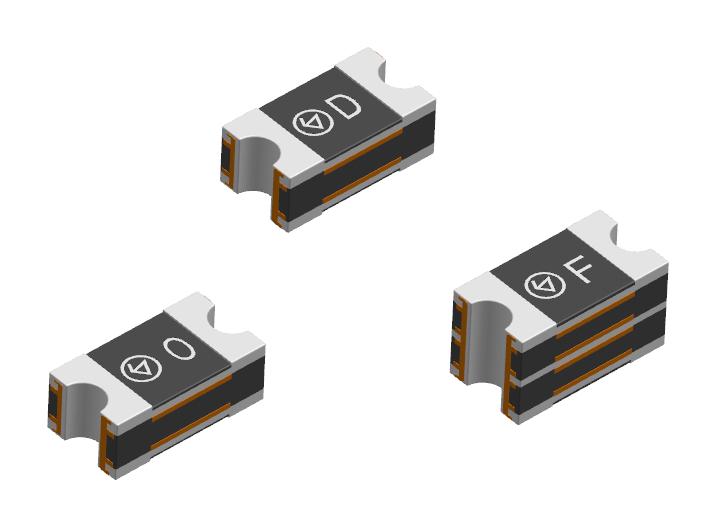

Eaton-Bussmann 3216FF7R Surface Mount Chip Fuse
The 3216FF series surface mount chip fuses are fast acting, designed for quick interruption of excessive current in electronic circuits. Compatible with reflow and wave soldering, these fuses feature excellent environmental integrity, heat, and shock tolerance. Marked with ampere ratings facing up in the carrier, they offer solder-free design for reliable temperature cycling. Suitable for high-density mounting, these fuses are ideal for protecting sensitive components while maintaining optimal performance under thermal and vibrational stresses, ensuring durability in various electronic applications.
Eaton-Bussmann 3216FF7R Surface Mount Chip Fuse Specifications:
- Rating: 4A-7A, 350% 1 Second Maximum
- Agency Recognition: UL JDYX2 & E19180, CSA 053787 C 000 & Class No: 1422 30
- Soldering Method: Wave immersion 260°C for 10 sec max, Infrared reflow 260°C for 30 sec max
- Physical Dimensions: Not to scale, typical package suitable for 8mm tape-and-reel packaging
- Environmental Resistance: MIL-STD-202 vibration and thermal shock, ANSI/J-STD-002 moisture resistance
- Electrical Specifications: Rated at 32V AC/DC, Melt Ptt around 0.000084 ohms, DC Cold Resistance approx. 0.0085 ohms
- Electrical Interruption: AC rating includes rated voltage, DC rating with a time constant less than 50 microseconds
Buy the Cooper Series 3216FF Chip Fuses: 4A-7A Fast Acting Surface Mount
Order the Cooper series 3216FF surface mount chip fuses today online to ensure rapid circuit protection. Designed for fast acting interruption of excessive current, these fuses are compatible with reflow and wave soldering processes, providing excellent environmental integrity. Their solder-free design offers superior temperature cycling characteristics, making them ideal for sensitive electronic components. With high heat and shock tolerance, they maintain durability in demanding conditions, ensuring your devices remain protected and reliable across various operational environments. Purchase now for optimal circuit safety.
Buy Cooper 3216FF series chip fuses now and experience unmatched reliability and circuit protection for high-density electronic applications.
Frequently Asked Questions
Where can I buy Eaton-Bussmann 3216FF7R?
You can click on the BUY or RFQ button to purchase 3216FF7R from an authorized Eaton-Bussmann distributor.
How do I troubleshoot issues or seek technical support for part 3216FF7R?
You can download the 3216FF7R datasheet or visit the Eaton-Bussmann website for support.
Who is the manufacturer of 3216FF7R?
Eaton-Bussmann
