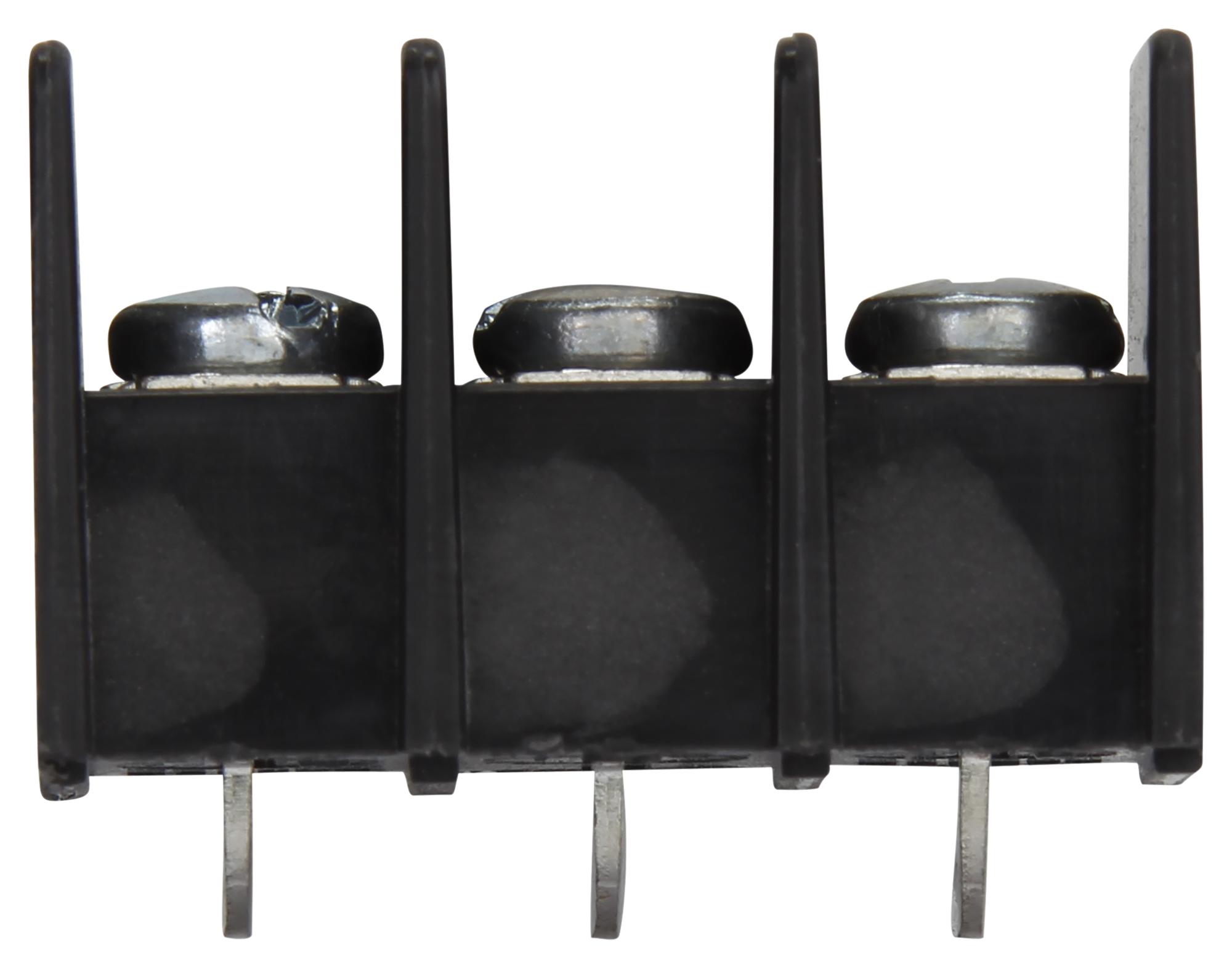

Eaton Bussmann A20220307 Terminal Block
The A2, LP2, and CB2 single row terminal blocks are designed for reliable electrical connections in industrial wiring. Featuring 30A rating at 300V, these terminal blocks incorporate various mounting options, barrier and barrier-end configurations, and multiple screw and entrance options. Constructed from UL-rated 94V-0 thermoplastic, they ensure safety during operation with operating temperatures up to 105°C. Suitable for wire ranges #12-22 AWG Cu, they include screw size #6-32 zinc-plated philslot, and support PCB mounting, with dimensions optimized for ease of flux washing and secure connections. These versatile blocks meet UL, CSA, IEC, and CE certifications, providing robust, compliant solutions for automation and control applications.
Eaton Bussmann A20220307 Terminal Block Specifications:
- Rating: A2:30A, 300V; LP2:30A, 150V; CB2:30A, 300V
- Center Spacing: 0.375 inches (9.52mm)
- Wire Range: #12-22 AWG Cu
- Screw Size: #6-32 zinc-plated philslot
- Torque Rating: 9 Ib-in
- Base: Standoffs for flux washing
- Distance Between Barriers: 0.032 inches (8.1mm)
- Recommended PCB Hole Diameter: 0.076 inches (1.93mm)
- Operating Temperature: -40°C to 105°C
- Material: UL Rated 94V-0 thermoplastic
- Breakdown Voltage: 3400V (A2 & LP2); 4100V (CB2)
Buy the Eaton A20220307 – Reliable Terminal Blocks for Industrial Applications
Order Eaton terminal blocks now to secure dependable electrical connections for your automation and wiring projects. These robust, UL-rated thermoplastic terminal blocks support a wide wire range, include multiple mounting options, and meet global safety certifications. Designed for easy flux washing, long-lasting durability, and efficient installation, they are ideal for industrial applications requiring reliable performance at up to 105°C. Purchase online today to ensure your automation systems operate smoothly with high-quality, compliant components engineered for safety and efficiency.
Get Eaton A20220307 today—built for reliable connections in industrial control systems with versatile mounting and high safety standards.
Frequently Asked Questions
Where can I buy Eaton Bussmann A20220307?
You can click on the BUY or RFQ button to purchase A20220307 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part A20220307?
You can download the A20220307 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of A20220307?
Eaton Bussmann
