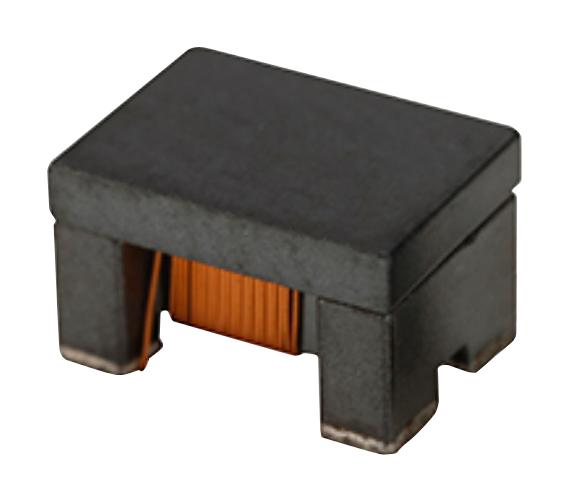

Eaton Bussmann ACE1V4532220R Automotive Chip Inductor
The ACE1V4532220R is an automotive-grade common-mode chip inductor designed for high-reliability electronic circuits in automotive applications. This 1812 (4532 metric) package features impedance ranging from 700 ohms to 15,000 ohms and inductance values between 11 uH and 200 uH, suitable for controllers, Ethernet, signal filtering, ADAS, and power systems. It operates from -40°C to +125°C, complies with JSTD-020 soldering profiles, and is ideal for robust automotive environments with moisture sensitivity level 1, ensuring optimal performance across diverse systems.
Eaton Bussmann ACE1V4532220R Automotive Chip Inductor Specifications:
- Package: 1812 (4532 metric)
- Impedance range: 700 ohms to 15,000 ohms
- Inductance range: 11 μH to 200 μH
- Operating temperature: -40°C to +125°C
- Moisture Sensitivity Level: 1
- Solder reflow temperature: JSTD-020 compliant
- Rated current: 250mA to 450mA depending on model
- Frequency response: 10 MHz typical impedance from 300 to 10,000 ohms
- Physical: Surface-mount, tape and reel packaging, 500 units per reel
- Design features: Automotive-grade, high reliability, moisture resistant
Buy the Buy Eaton ACE1V4532220R Automotive Common-Mode Chip Inductor Part Number ACE1V4532220R Online
Purchase the Eaton ACE1V4532220R online today to enhance your automotive circuits with a high-quality, reliable common-mode chip inductor. This component delivers excellent impedance characteristics and inductance options suitable for Controller Area Network, Ethernet, ADAS, and other critical automotive systems. With its robust design meeting automotive standards, it guarantees performance across operating temperatures from -40°C to +125°C. Buy now to ensure your automotive projects benefit from top-tier suppression of electromagnetic interference and consistent signal integrity, all with quick online ordering and fast shipping.
Buy Eaton ACE1V4532220R automotive-grade common-mode inductor now and ensure reliable filtering and power management in your automotive systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann ACE1V4532220R?
You can click on the BUY or RFQ button to purchase ACE1V4532220R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part ACE1V4532220R?
You can download the ACE1V4532220R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of ACE1V4532220R?
Eaton Bussmann
