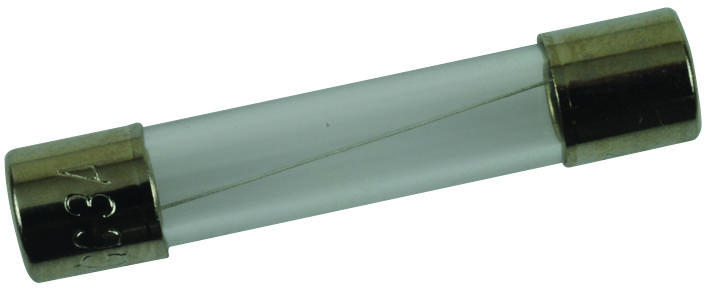

Eaton Bussmann AGC1R Fast-Acting Fuse
This fast-acting fuse is rated for 250 VAC and 1 Amp, housed in a cylindrical 3AG or 3AB case measuring 6.35mm by 31.75mm. It features nickel-plated brass endcaps and can be equipped with optional axial leads, making it ideal for circuit protection applications that demand quick response. UL listed and CSA certified, it meets standard 248-14 for safety. Its compact size and reliable performance provide effective overcurrent protection for various electrical systems.
Eaton Bussmann AGC1R Fast-Acting Fuse Specifications:
- Voltage Rating: 250 VAC
- Current Rating: 1 Amp
- Physical Size: 6.35mm x 31.75mm (1/4 inch x 1 1/4 inch)
- Case Type: 3AG or 3AB cylindrical
- Material: Glass tube, nickel-plated brass endcaps
- UL Certification: Standard 248-14, UL Listed Card: AGC 0-10
- CSA Certification: Class No. 1422 30, 1422 01
- Environmental Resistance: Shock - 40 - 4A MIL-STD-202, Method 213, Test Condition I; Vibration - 40 - 30A MIL-STD-202, Method 204
- Optional axial leads available: copper tinned wire with nickel-plated brass overcaps
- Packaging: Choose between 100 or 1000 pieces per carton
Buy the Buy Bussmann Fast-Acting Fuse Part Number AGC1R Online
Secure your electrical systems with the Bussmann AGC1R fast-acting fuse, rated for 250 VAC and 1 Amp. This compact fuse features a cylindrical 3AG or 3AB case, measuring 6.35mm by 31.75mm, with nickel-plated brass endcaps. It offers quick response to overcurrent conditions, ensuring device safety and longevity. UL listed and CSA certified, it is suitable for a wide range of circuit protection applications. Available in packaging options of 100 or 1000 pieces, order online today for dependable overcurrent protection.
Get Bussmann AGC1R today—designed for quick circuit protection with reliable UL listing and CSA certification.
Frequently Asked Questions
Where can I buy Eaton Bussmann AGC1R?
You can click on the BUY or RFQ button to purchase AGC1R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part AGC1R?
You can download the AGC1R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of AGC1R?
Eaton Bussmann
