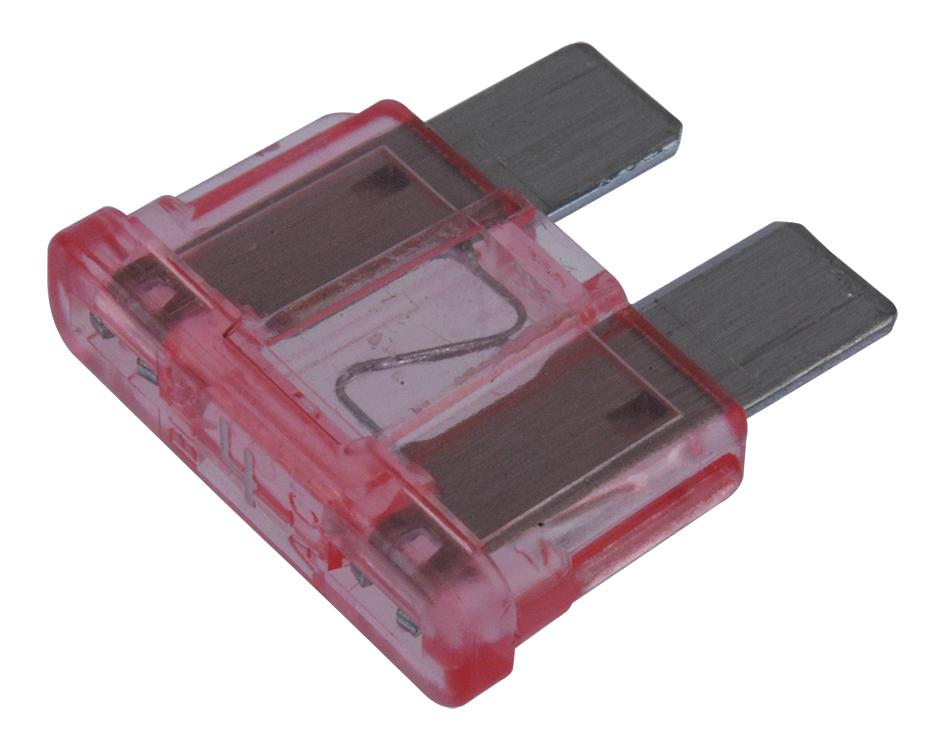

Eaton Bussmann BKATC4 Blade Fuse
This is a fast-acting fuse rated for 32 VDC and 4 Amps. It features a blade-type package with dimensions of 19.30mm x 5.25mm x 12.50mm and is designed for mounting in a holder.
Eaton Bussmann BKATC4 Blade Fuse Specifications:
- Voltage Rating: 32V
- Amp Rating: 4A
- Housing Material: Nylon (open body), Polycarbonate (test point models)
- Terminals: Tin-plated zinc
- Dimensions: Length 19.30mm, Width 5.25mm, Height 12.50mm
- Operating Temperature Range: -40°C to 100°C
- UL Flammability Rating: UL 94
- Interrupting Rating: 1kA
- UL Recognized File: E56412
- RoHS Compliant: Yes
- Environmental Ratings: 95% RH non-condensing
Buy the Buy Eaton Fuse Part Number BKATC4 Online
Enhance your circuit protection with the Eaton fuse BKATC4, rated at 32 volts and 4 amps. Featuring corrosion-resistant zinc terminals, UL recognition, and a compact blade package, it’s ideal for automotive and control applications. Its wide operating temperature range from -40°C to 100°C ensures durability in extreme environments. The fuse complies with RoHS standards and is designed for quick installation, providing reliable performance and quick troubleshooting in your electrical system. Order online today for trusted protection and superior quality.
Get Eaton BKATC4 fuse today—designed for automotive and low-voltage control circuits, built for reliability and long-lasting performance.
Frequently Asked Questions
Where can I buy Eaton Bussmann BKATC4?
You can click on the BUY or RFQ button to purchase BKATC4 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part BKATC4?
You can download the BKATC4 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of BKATC4?
Eaton Bussmann
