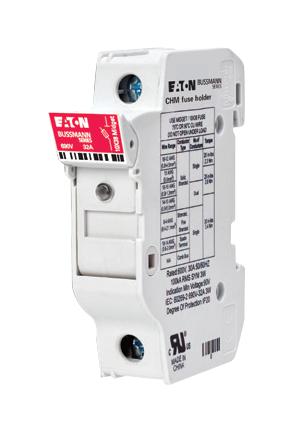

Eaton Bussmann CHM1DIU Fuse Holder
Eaton's Bussmann series CH DIN-Rail fuse holders are designed for UL Class CC, midget, IEC 10x38, and PV fuses. These IP20 finger-safe holders come in various configurations, including with or without indication, for 1-, 2-, or 3-pole setups. They support voltages up to 690 V IEC, 600 V UL, and 1000 Vdc PV, with ratings up to 32A. Features include high SCCR, safety covers, ganged mounting, and compatibility with remote PLC indication modules. The holders ensure safe, flexible power distribution for industrial control and photovoltaic applications.
Eaton Bussmann CHM1DIU Fuse Holder Specifications:
- Voltage Ratings: 600 V UL, 690 V IEC, 1000 Vdc PV
- Current Ratings: 30A UL, 32A IEC
- Short-Circuit Current Rating: 33 kA PV, 200 kA RMS Sym. (Class CC, midget)
- Mounting: 35mm DIN-Rail
- Wire Range: #18 to #4 AWG solid, stranded, fine stranded
- Terminals: Single or dual conductors, comb busbar, torque 30 lb-in
- Flammability: UL 94V0, self-extinguishing
- Temperature Range: -20°C to 90°C for storage and operation
- Agency Certifications: UL, CSA, IEC, RoHS, CCC
- Dimensions: Approximate length 73.88 mm, width varies with configuration, suitable for industrial control panels
Buy the Bussmann Series CH Fuse Holder: CHM1DIU
Secure your power system with the Bussmann Series CHM1DIU fuse holder, engineered for safety, flexibility, and high SCCR ratings. Easy to install on DIN rails, it supports UL Class CC, IEC midget, and PV fuses, ensuring reliable protection for industrial and solar applications. Its finger-safe design minimizes electrical hazards, while compatibility with accessories offers customization. Versatile wiring options and robust construction make it ideal for control panels, PV installations, and automation systems. Trust in Eaton’s high-quality fuse holders to protect your equipment and improve system uptime.
Buy Bussmann Series CHM1DIU fuse holder now and experience unmatched safety and reliable power distribution for industrial and photovoltaic systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann CHM1DIU?
You can click on the BUY or RFQ button to purchase CHM1DIU from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part CHM1DIU?
You can download the CHM1DIU datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of CHM1DIU?
Eaton Bussmann
