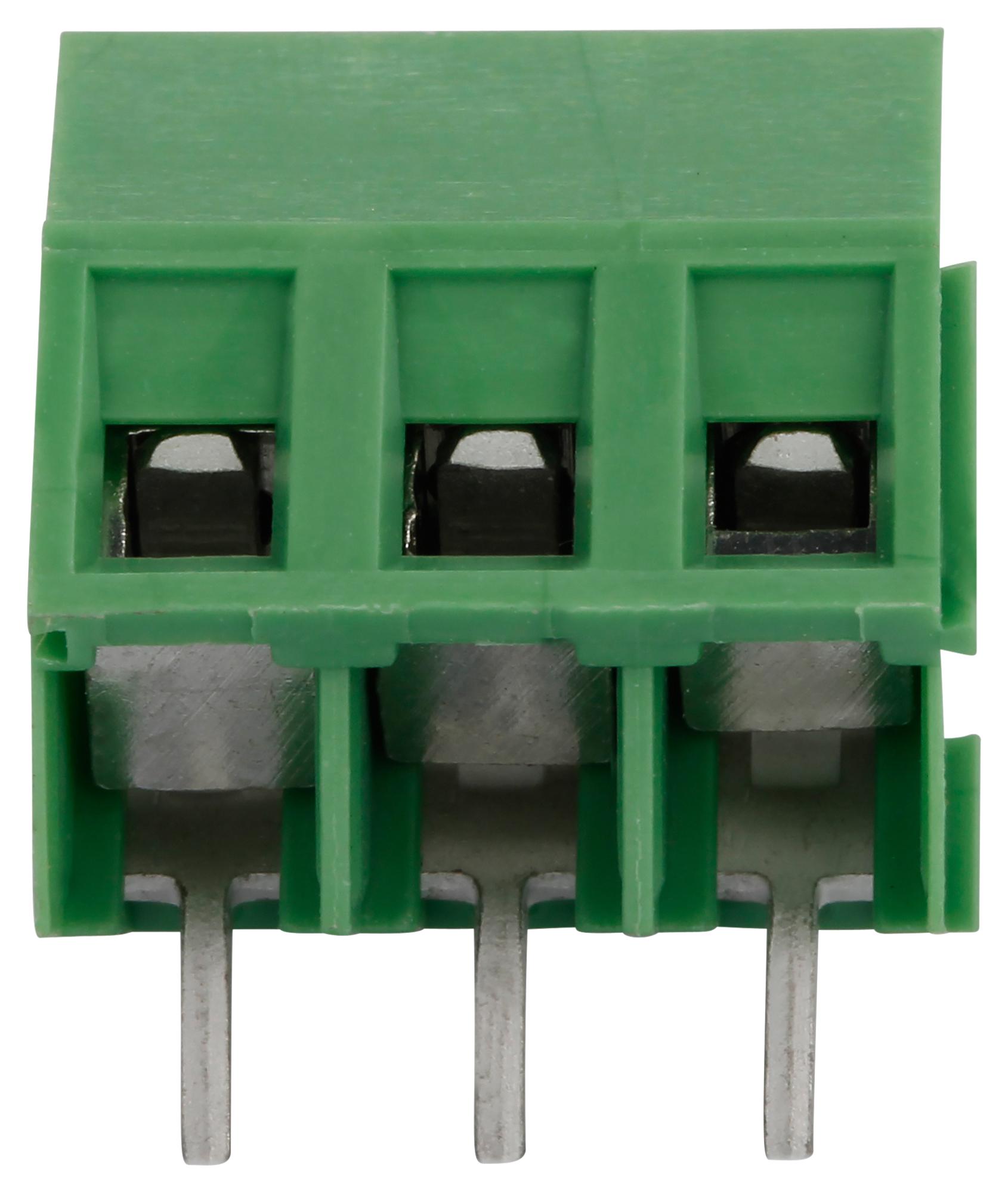

Eaton Bussmann EM322504 PCB Terminal Block
The EuroMag EM322504 terminal block is a modular PCB connector designed for easy interlocking and reliable electrical connection. With a 35° angle, 5.00mm center spacing, and a rated current of 16A at 300V, it supports wire ranges from #12 to #26 AWG. Made from UL-rated 94V0 thermoplastic housing and brass tin-plated contacts, it ensures durability and safety. Suitable for PCB applications, this connector features dovetail interlocking for longer lengths and a recommended PCB hole diameter of 0.055 inches, operating reliably within -40°C to 105°C.
Eaton Bussmann EM322504 PCB Terminal Block Specifications:
- Rating: 16A, 300V
- Center Spacing: 0.197” (5.00mm)
- Wire Range: #12-26 AWG
- Housing Material: UL rated 94V0 Thermoplastic
- Contact Material: Brass Tin-Plated
- Screw Size: M2.6 Zinc-Plated Steel
- Operating Temperature: -40°C to 105°C
- Recommended PCB Hole Diameter: 0.055" (1.40mm)
- Construction: Modular dovetail interlocking design
- Torque Rating: 5 Ib-in
- Agency Certifications: CE Certified, UL File E62622
- Dimensions: 35mm pitch, 5 poles
Buy the EuroMag EM322504 – Reliable PCB Terminal Blocks for Industrial Applications
Discover the EuroMag EM322504 PCB terminal block, an essential connector for industrial PCB wiring. Featuring a 35° angle, 5mm center spacing, and rated for 16A at 300V, it supports #12-26 AWG wires. Made with UL-rated thermoplastic and brass tin-plated contacts, this modular design offers interlocking for custom lengths and industrial durability. Easy to install with recommended PCB hole size of 0.055 inches, it operates efficiently between -40°C and 105°C, ensuring safe, reliable electrical connections for your projects.
Order your EuroMag Series EM322504 PCB terminal block today and enhance your industrial wiring with this reliable, modular connector designed for long-term performance.
Frequently Asked Questions
Where can I buy Eaton Bussmann EM322504?
You can click on the BUY or RFQ button to purchase EM322504 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part EM322504?
You can download the EM322504 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of EM322504?
Eaton Bussmann
