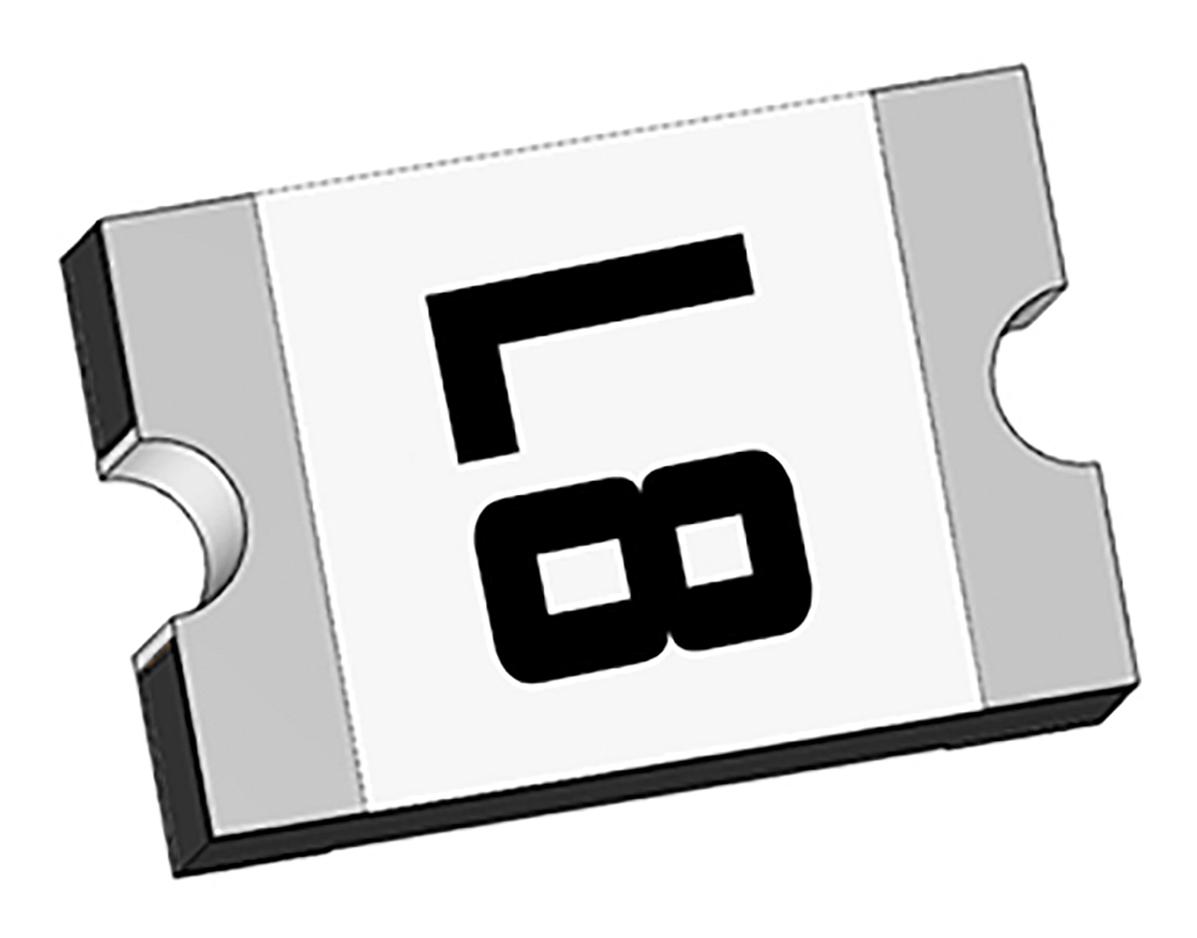

Eaton Bussmann PTSLR12066V075 Low Resistance SMD PTC Fuse
The PTSLR1206 series features low resistance surface mount resettable PTC fuses designed for compact applications requiring reliable overcurrent protection. With a dimension of 1206 (3216 metric), these fuses can handle voltages up to 6V and current ratings from 0.75A to 5.00A. They are suitable for applications such as data ports, micromotors, fans, low voltage medical equipment, USB protection, and battery charging. The fuses offer fast trip times, low resistance, and are recognized by UL and TUV for safety and reliability in electronic circuits.
Eaton Bussmann PTSLR12066V075 Low Resistance SMD PTC Fuse Specifications:
- Dimension: 1206 (3216 metric)
- Maximum Voltage: 6V
- Current Ratings: 0.75A to 5.00A
- Resistance: Low resistance (as low as 0.013Ω)
- Trip Time: Fast response, typically within seconds
- Operating Temperature: -40°C to +85°C (derating applies)
- Storage Temperature: -10°C to +40°C
- Humidity: <75% RH during storage
- Safety Certifications: UL Recognized, TUV Certified
- Soldering Profile: Compatible with standard SnPb and lead-free reflow profiles
- Packaging: Tape and reel, 2500 to 5000 parts per reel
- Peak Temperature for Soldering: 260°C
Buy the Eaton PTSLR1206 – Reliable Overcurrent Protection for Industrial Applications
Secure your electronic devices with Eaton PTSLR1206 low resistance PTC fuses. Engineered for reliability and rapid response, these surface-mount resettable fuses are ideal for overcurrent protection in data ports, medical equipment, and battery systems. Their compact 1206 footprint saves space while ensuring consistent performance under voltage up to 6V and current ratings from 0.75A to 5A. Easy to install with standard soldering profiles, they meet UL and TUV safety standards, making them perfect for demanding industrial and consumer applications.
Buy Eaton PTSLR1206 now and experience unmatched reliability and performance in overcurrent protection for electronic circuits.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTSLR12066V075?
You can click on the BUY or RFQ button to purchase PTSLR12066V075 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTSLR12066V075?
You can download the PTSLR12066V075 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTSLR12066V075?
Eaton Bussmann
