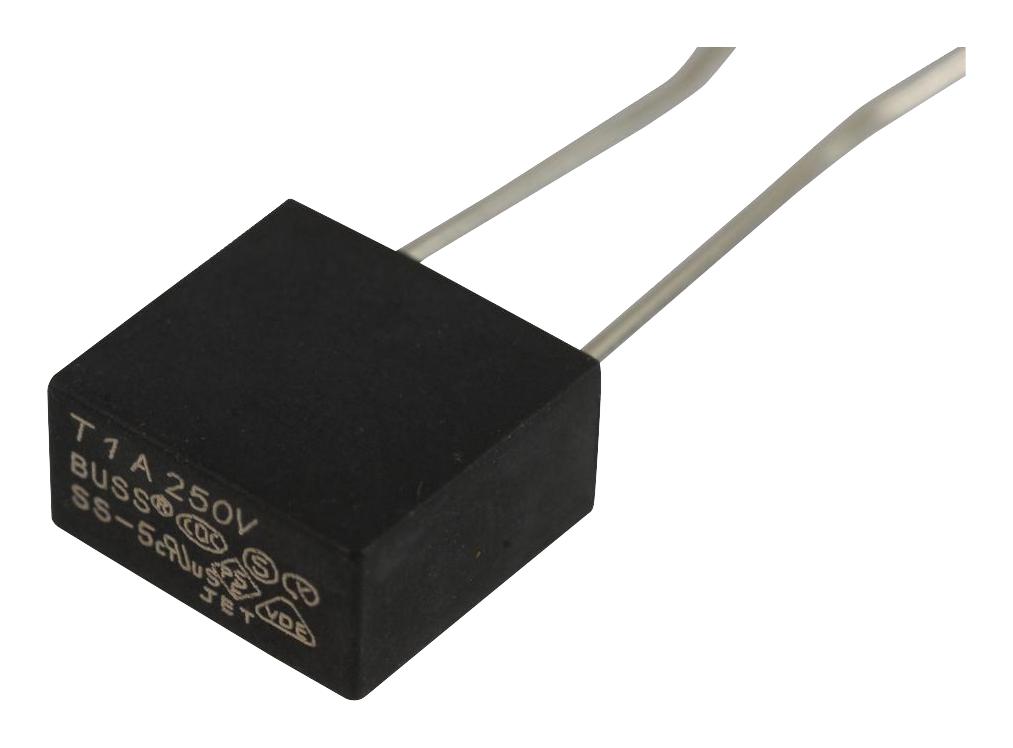

Eaton Bussmann SS5H2AAPH Time-delay fuse
The SS-5H series is a set of radial leaded, time delay fuses rated up to 300VAC, suitable for electrical protection in various consumer and industrial applications. These fuse devices feature a small rectangular lead design, UL 94V0 flammability rating, halogen-free composition, and high vibration resistance compliant with MIL-STD-202F. They provide reliable overcurrent protection for power supplies, adapters, battery chargers, notebooks, TVs, lighting ballasts, and white goods. Certifications include UL, VDE, TUV, CQC, PSE, and KC-Mark approval, ensuring safety and compliance for global markets.
Eaton Bussmann SS5H2AAPH Time-delay fuse Specifications:
- Voltage Rating: 300VAC
- Interrupting Rating: 100A
- Rated Current: 1A to 6.3A
- Time-Delay Characteristic: 1 hour to 20 milliseconds
- Flammability: UL 94V0
- Materials: Plastic cap and base, halogen-free
- Vibration Resistance: MIL-STD-202F, Method 201A
- Operating Temperature Range: -40°C to +125°C (with correction)
- Storage Temperature: -10°C to 40°C
- Soldering Temperature: 260°C for 10 seconds
- Certifications: UL, VDE, TUV, CQC, PSE, KC-Mark
- Lead Type: Radial leaded, small rectangular design
Buy the Cooper Bussmann SS-5H – Reliable Time-Delay Fuses for Industrial Applications
Discover the Cooper Bussmann SS-5H series, high-quality time-delay fuses designed for protection of industrial and consumer electronics. These reliable, UL and CE-certified fuses withstand high vibration, temperature extremes, and demanding environments. With a compact radial leaded design, they save PCB space and ensure easy soldering. Perfect for power supplies, adapters, and white goods, these halogen-free fuses feature a high breaking capacity of 100A, ensuring safe circuit protection and compliance with international safety standards. Order online today for trusted performance.
Get Cooper Bussmann SS-5H series today—built for precision, high current capacity, and long-lasting durability.
Frequently Asked Questions
Where can I buy Eaton Bussmann SS5H2AAPH?
You can click on the BUY or RFQ button to purchase SS5H2AAPH from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part SS5H2AAPH?
You can download the SS5H2AAPH datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of SS5H2AAPH?
Eaton Bussmann
