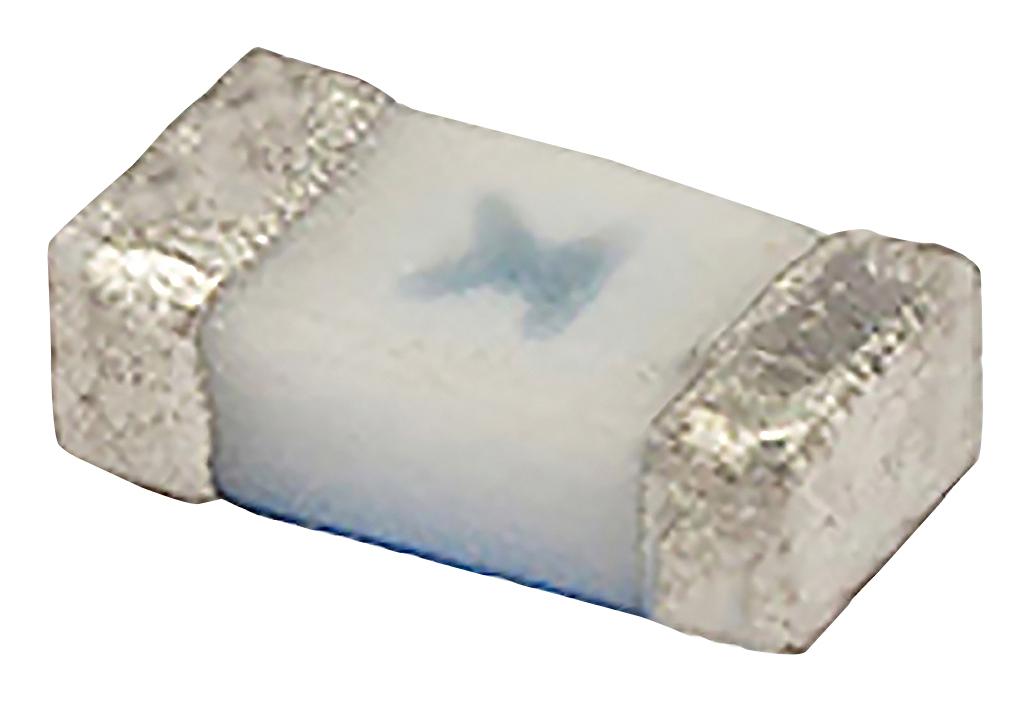

Eaton Bussmann TR0603HV1R Fast-Acting Chip Fuse
The TR0603HV series consists of compact, fast-acting chip fuses with a 0603 (1608 metric) size, ideal for secondary circuit protection in electronics. These fuses feature a rugged ceramic and glass construction, high breaking capacity up to 63 V, and environmental resilience with a moisture sensitivity level of 1. Suitable for use in switch modules, printers, laptops, tablets, flat panel displays, HDTVs, gaming consoles, handheld devices, and mobile chargers, they ensure reliable overcurrent protection while supporting reflow and wave soldering processes. Their precise electrical ratings and thermal derating make them suitable for demanding electronic applications.
Eaton Bussmann TR0603HV1R Fast-Acting Chip Fuse Specifications:
- Size: 0603 (1608 metric)
- Voltage Rating: 63 V
- Amp Ratings: 0.5 A to 15 A
- Breaking Capacity: Up to 63 V
- Construction: Ceramic and glass
- Environmental Resistance: Excellent, with MSL 1
- Temperature Range: -55°C to +125°C (derated)
- Contact Resistance: Typically 0.0019 to 0.0319 ohms
- Package: Reel packaging, 5,000 parts per reel
- Soldering: Compatible with reflow and wave soldering
- Certifications: UL Recognized
- Mechanical Strength: Terminal force of 1.8 kg for 60 seconds
- Fuse Marking: F, G, H, J, K based on amp ratings
- Peak Temperature (Tg): 130°C
Buy the Buy Eaton Fast-Acting Chip Fuse Part Number TR0603HV1R Online
Purchase the Eaton TR0603HV1R series fast-acting chip fuse online now for superior secondary circuit protection in a compact 0603 size. Designed with rugged ceramic and glass construction, these fuses support high breaking capacity up to 63 V and are compatible with reflow and wave soldering. Ideal for printers, laptops, tablets, HDTVs, gaming consoles, and portable devices, they offer excellent environmental resistance and reliable overcurrent protection. Ensure your electronics operate safely and efficiently by ordering this high-quality fuse today.
Order your Eaton TR0603HV1R series high-current chip fuse today and ensure your electronic projects are protected with reliable, compact overcurrent protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann TR0603HV1R?
You can click on the BUY or RFQ button to purchase TR0603HV1R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part TR0603HV1R?
You can download the TR0603HV1R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of TR0603HV1R?
Eaton Bussmann
