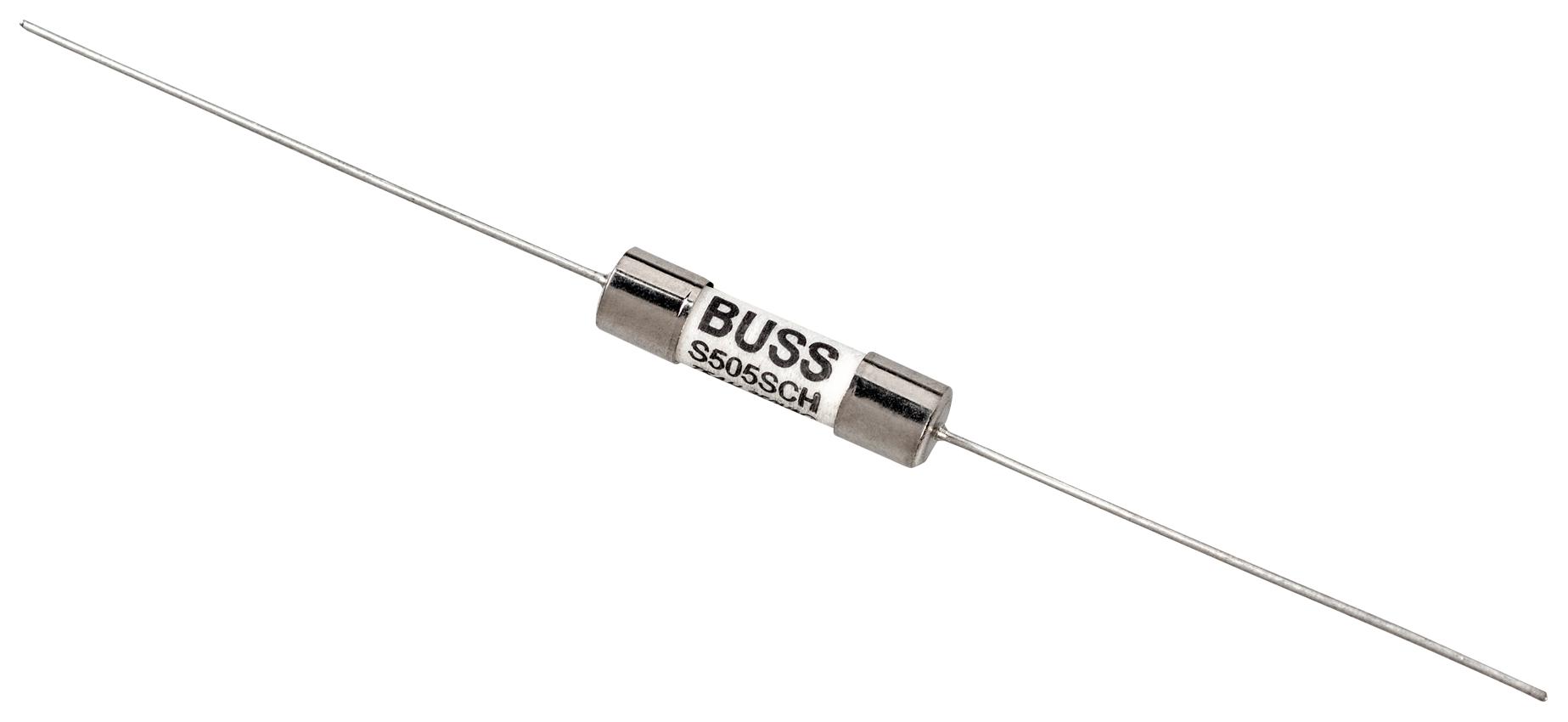

Eaton Bussmann TR2S505HV315R Ceramic Tube Fuse
High-performance ceramic tube fuses designed for safety-critical electronic and electrical applications, rated for 400Vdc and 500-600Vac with high breaking capacity. The S505H Series features time-delay characteristics, electroplated end caps, and optional axial leads. These fuses comply with IEC 60127-2 standards, are RoHS, lead-free, and halogen-free. Suitable for power supplies, adapters, battery chargers, desktops, printers, TVs, air conditioners, and lighting ballasts. They offer reliable circuit protection with various current ratings, approvals from UL, cURus, TUV, PSE, and robust construction for high voltage environments.
Eaton Bussmann TR2S505HV315R Ceramic Tube Fuse Specifications:
- Voltage Rating: 250Vac, 600Vdc, Max. 400Vdc, 600Vac
- Interrupting Rating: 1500A (AC), 100A (DC)
- Resistance Drop: 0.507mV to 0.015mV depending on rating
- Dimensions: 5x20mm ceramic tube with electroplated end caps
- RoHS Compliant, lead-free, halogen-free
- Compliance: UL, cURus, TUV, PSE approvals
- Operating Temperature Range: -40°C to +85°C
- Soldering Parameters: Max. 10s at 260°C solder temp, or iron at 350°C for 5s
- Package: Tape and reel, or carton options
- Construction: Ceramic tube, wire fuse element, plated fuse cap, filler, solder, eyelet
Buy the Bussmann Series S505H Power Fuse: TR2S505HV315R
Order the Bussmann ceramic tube fuse S505H series online today to ensure your electronic projects and appliances are protected with high-quality, reliable fuses rated for 400Vdc and 600Vac. These fuses feature time-delay operation, electroplated end caps, and are RoHS compliant, making them ideal for power supplies, adapters, battery chargers, and other electronics. With UL, cURus, TUV, and PSE approvals, purchasing online guarantees quick delivery and secure transactions. Protect your valuable equipment with high-current fuse solutions trusted by professionals worldwide.
Buy Bussmann S505H fuse now and experience unmatched reliability and performance in high-current, high-voltage circuit protection solutions.
Frequently Asked Questions
Where can I buy Eaton Bussmann TR2S505HV315R?
You can click on the BUY or RFQ button to purchase TR2S505HV315R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part TR2S505HV315R?
You can download the TR2S505HV315R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of TR2S505HV315R?
Eaton Bussmann
