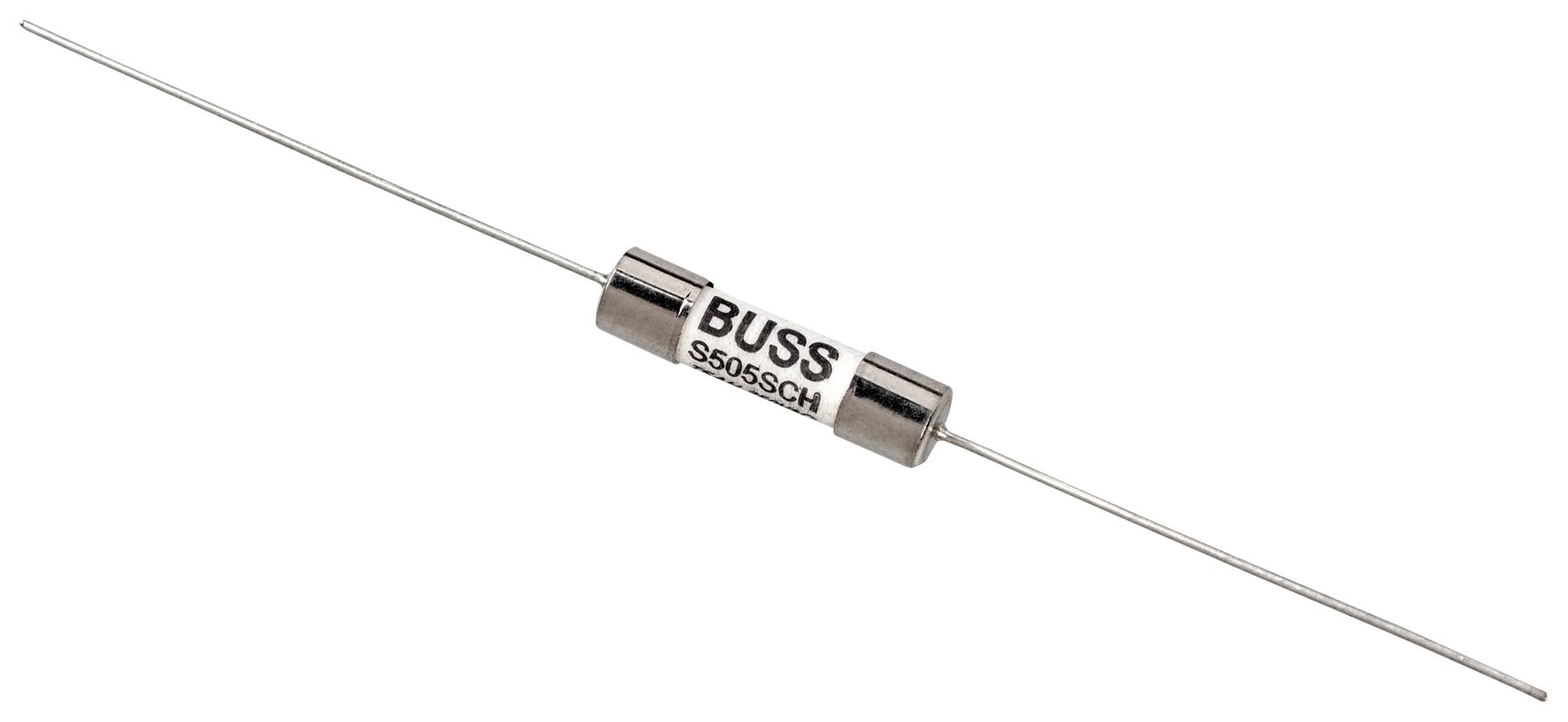

Eaton Bussmann TR2S505HV800R High-Voltage Fuse
The S505H series fuse with 5x20mm ceramic tube construction offers high voltage ratings and reliable overcurrent protection for power supplies, battery chargers, and electronic devices. Featuring optional axial leads, these time-delay fuses are compliant with IEC 60127-2 standards, RoHS, halogen, and lead-free. Suitable for applications from 400Vdc to 600Vac, they provide high breaking capacity and are approved by various agencies including cURus, TUV, PSE, and CQC. The fuses ensure safety and durability in demanding electronic and industrial systems.
Eaton Bussmann TR2S505HV800R High-Voltage Fuse Specifications:
- Voltage Rating: 250V AC/DC, Max. 600V AC/DC
- Interrupting Rating: 1500A at 250V AC, 100A at 400V DC
- Dimensions: 5x20mm ceramic tube
- Lead Options: Axial leads available, tinned copper wire with nickel-plated brass caps
- RoHS Compliance: Yes, lead-free and halogen-free
- Approval Agencies: cURus, TUV, PSE, CQC
- Soldering Temperature Range: -40°C to +85°C, recommended soldering iron tip at 350°C for 5 seconds
- Operating Temperature: -40°C to +85°C, derating applies during soldering
- Construction: Ceramic tube with plated end caps, wire fuse element, filler, solder, and eyelet
- Package Options: Cardboard box or tape and reel for automation
Buy the Cooper Bussmann S505H – Reliable 5x20mm Fuses for Industrial Applications
Secure your electronics with the high-voltage, 5x20mm ceramic fuse series designed for power supplies, battery chargers, and more. These RoHS-compliant, agency-approved fuses feature optional axial leads for easy installation and offer high breaking capacities up to 1500A at 250V AC. Crafted with ceramic tubes and plated end caps, they provide exceptional durability and safety in demanding environments. Order online today to guarantee reliable overcurrent protection and maintain optimal system safety in your industrial and electronic applications.
Order your Cooper Bussmann Series S505H 800V high-voltage fuse today and ensure your electronic and industrial projects have dependable overcurrent protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann TR2S505HV800R?
You can click on the BUY or RFQ button to purchase TR2S505HV800R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part TR2S505HV800R?
You can download the TR2S505HV800R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of TR2S505HV800R?
Eaton Bussmann
