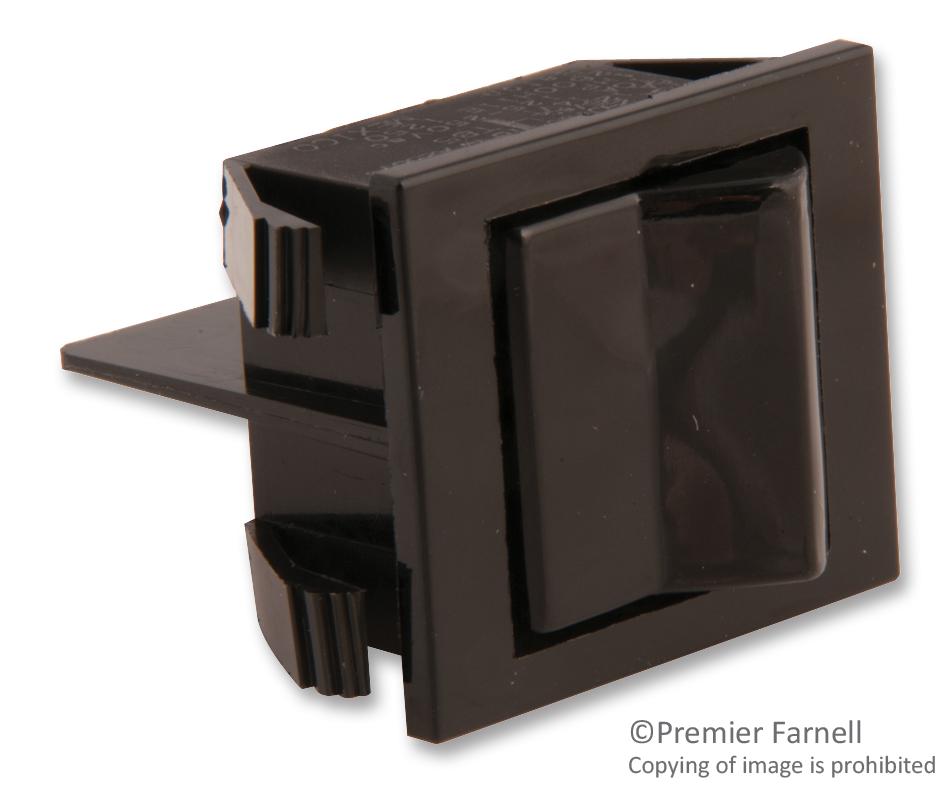

Eaton Electronics 2600H11E industrial rocker switch
The 2600H11E is a double-pole, single-throw AC rocker switch designed for heavy-duty applications. It features a moisture-resistant seal, silver-inlaid copper contacts, and an oversized nylon lever with a smooth finish and thumb depression for effortless control. Rated for high inrush currents up to 100A peak for 10 milliseconds, it includes a slow-make/slow-break contact mechanism, 6.3mm quick-connect terminals, and provides excellent electrical performance with 10 milliohms maximum contact resistance and 100 megaohms insulation resistance. Certified for international safety standards, the switch is ideal for appliances, medical equipment, and industrial control systems.
Eaton Electronics 2600H11E industrial rocker switch Specifications:
- Type: DPST (double-pole, single-throw)
- Function: ON-NONE-OFF
- Inrush Current Rating: up to 100A peak for 10 ms
- Contact Material: Silver inlay over copper
- Contact Resistance: 10 milliohms max at 1A, 4V DC
- Insulation Resistance: 100 megaohms min
- Dielectric Withstand Voltage: 1000V RMS min
- Terminal Type: 6.3mm quick-connect
- Mechanical Life: 50,000 cycles min
- Operating Temperature Range: 0°C to 85°C (+32°F to +185°F)
- Certifications: UL, CSA, VDE
- Dimensions: Approximate panel cutout diameter 22.05mm (0.87 inches), mounting depth varies, lever size compatible with standard panel thickness 0.75–3.00mm
Buy the Eaton 2600H11E – Reliable Heavy-Duty AC Switch for Industrial Applications
Purchase the Eaton 2600H11E online today—engineered for demanding industrial and medical applications. This heavy-duty double-pole switch features reliable silver copper contacts, a moisture-resistant seal, quick-connect terminals, and exceptional electrical performance with high inrush current capacity. Its durable design ensures long-lasting operation in tough environments, making it ideal for appliances, control panels, and instrumentation. Easily install with standard panel cutouts, and enjoy the confidence of certified safety standards. Order now for dependable performance in your critical systems.
Get Eaton 2600H11E today—built for industrial strength with moisture resistance and high inrush current capacity.
