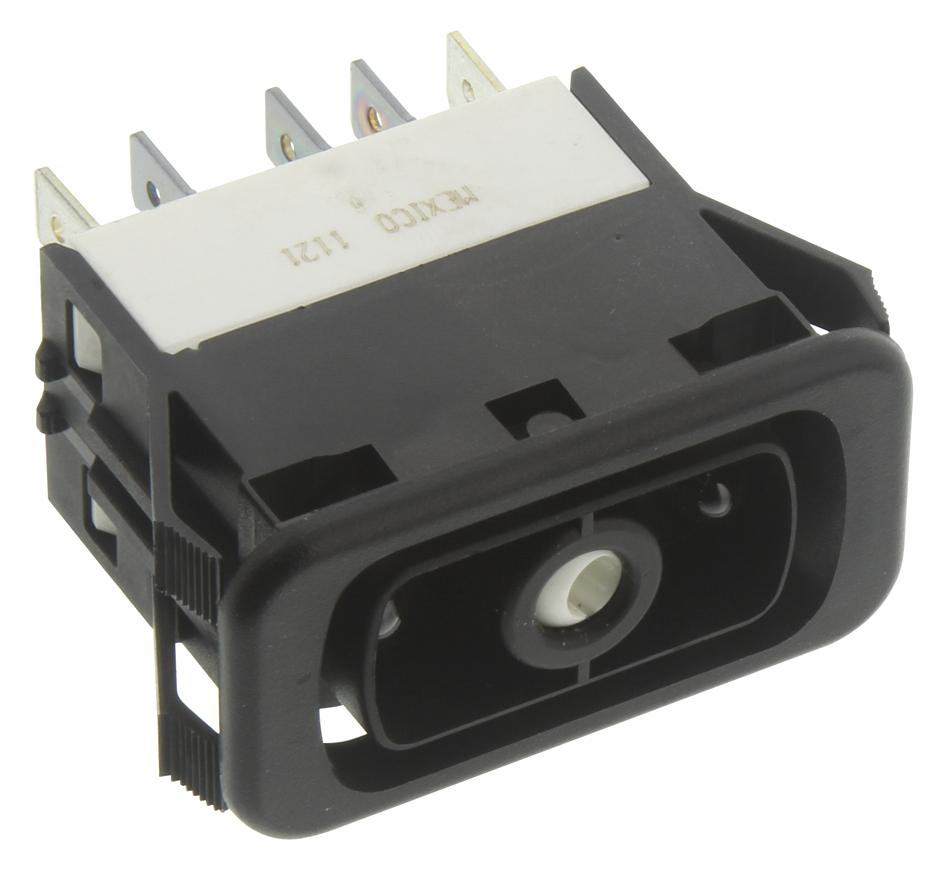

Eaton Electronics NGR15681BNAAN Vehicle Rocker Switch
Eaton's NGR Rocker Switches are robust, full-sized switches initially designed for heavy trucks, now used in various vehicle applications. They feature European styling, ergonomic design, and solid durability, offering illuminated and non-illuminated options with incandescent bulbs or LEDs. The switches support dependent or independent lighting circuits, multiple circuit configurations, and have laser-etched or pad-printed legends with optional lenses and labels. Sealing options include splash, dust resistance to IP42, or IP67 for sealed versions, with replaceable rockers and bezels in matte finish. They have a rectangular panel cutout mounting system, high mechanical and electrical life, and compliance with UL and CSA standards.
Eaton Electronics NGR15681BNAAN Vehicle Rocker Switch Specifications:
- Ratings: 1A at 125 Vac, 10A at 250 Vac, 14 Vdc incandescent rating
- Approval: UL and CSA standards approved
- Contact Mechanism: Slow-make/slow-break with copper alloy contacts
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Terminal Type: Silver-plated copper alloy spade, 0.25 in (6.35 mm)
- Base Material: High-grade thermoplastic molding
- Dielectric Strength: 1000V rms minimum
- Mounting: Snap-in with plastic bezel, rectangular cutout 1.734 x 0.857 in (44 x 22 mm)
- Panel Thickness: 0.040-0.158 in (1.0-4.0 mm), optimal 0.060-0.118 in (1.5-3.0 mm)
- IP Rating: Standard IP42, sealed IP67
- Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Buy the Eaton Series NGR Vehicle Switch: NGR15681BNAAN
Order the Eaton NGR15681BNAAN rocker switch online today for reliable vehicle switching performance. With sealed IP67 options, LED and incandescent lighting, and European ergonomic design, this heavy-duty switch offers long-lasting durability, versatile circuit options, and customizable legends. Its high electrical and mechanical life ensures consistent operation in demanding environments. Easy to install with snap-in mounting and high-grade thermoplastic, this switch meets UL and CSA standards. Enhance your vehicle controls by purchasing this versatile, rugged rocker switch online now for efficient, durable operation.
Buy Eaton NGR15681BNAAN switch now and experience unmatched reliability and performance with durable, sealed switching solutions for vehicle applications.
