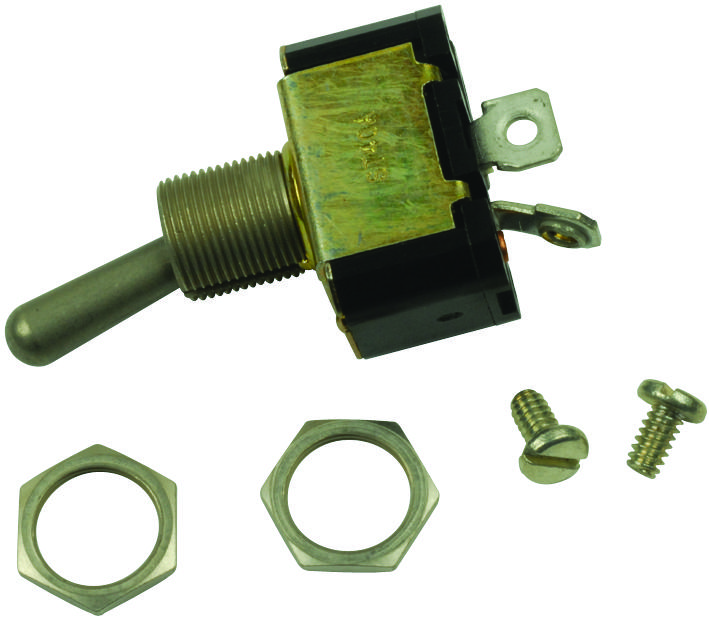

Eaton Electronics 7300K36 Heavy Duty Military Toggle Switch
The 7300K36 is a single-pole, single-throw non-illuminated sealed toggle switch built to meet MIL-S-83731 standards. Designed for heavy-duty military applications, it features a silicone rubber seal between the lever and bushing, ensuring resistance against dust, water, and contaminants. Made with corrosion-resistant metal parts, the switch is rated for AC operation, operates within -17.8°C to 65.6°C, and has circuit designations stamped on the side for easy identification. Suitable for defense, aerospace, and industrial uses, it includes standard toggle and lever lock versions, making it dependable in harsh environments.
Eaton Electronics 7300K36 Heavy Duty Military Toggle Switch Specifications:
- Ratings: See product selection tables; AC rated, 125 Vac, 250 Vac, 28 Vdc
- Contact mechanism: Heavy-duty slow-make/slow-break or quick-make/quick-break wiping action
- Contact material: Silver-plated copper (movable), copper or bronze (stationary), with silver or coin silver faces
- Terminal types: Screw terminals, brass or silver-plated, and solder lugs
- Base material: Thermoset molding
- Mounting means: Threaded bushing 0.468 in (11.89 mm) diameter, 32 threads/inch
- Keyway: 0.068 x 0.035 in (1.73 x 0.89 mm) deep, anti-rotation feature
- Hardware: Includes hexagon facenuts, locknuts, and lockwashers, unassembled
- Dielectric withstand: 1000V minimum
- Operating temperature: 0° to 150°F (-17.8° to 65.6°C)
- Dimensions: Approximate in inches—height 1.120, width 0.680, depth 0.687, with 18/32-32 threaded terminals
- Certifications: UL Recognized, CSA Certified, MIL-S-83731 compliant
- Environmental: Sealed against moisture, dust, and contaminants, designed for military use
Buy the Eaton 7300K36 – Reliable Military Toggle Switch for Industrial Applications
Discover the Eaton 7300K36 heavy-duty military toggle switch, engineered for rigorous industrial and military environments. This sealed switch offers superior resistance to dust, water, and contaminants, ensuring reliable operation in extreme conditions. Designed to meet MIL-S-83731 standards, it features corrosion-resistant metal parts and a silicone rubber seal between the lever and bushing for added protection. Its robust construction and high-grade electrical ratings make it ideal for defense, aerospace, and industrial applications, providing dependable performance and easy installation in demanding environments.
Order your Eaton 7300K36 heavy-duty military toggle switch today and enhance your industrial or defense equipment with top performance and durability.
Frequently Asked Questions
Where can I buy Eaton Electronics 7300K36?
You can click on the BUY or RFQ button to purchase 7300K36 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7300K36?
You can download the 7300K36 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7300K36?
Eaton Electronics
