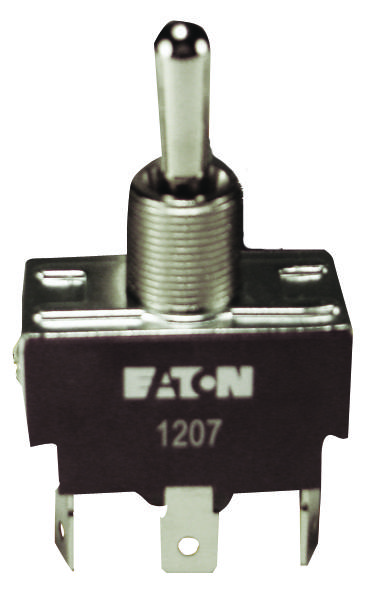

Eaton Electronics XTD2C2A Industrial toggle switch
The XT series toggle switch provides high current ratings suitable for both single and double-pole applications, with versatility in switching circuits, functions, and accessories. It supports ratings of up to 20A at 125VAC and 10A at 277VAC, capable of handling demanding loads such as motors, lamps, and inductive devices. The switch features a high horsepower rating of 1½ HP at 125 to 250VAC for double-pole configurations. Easy to install, it includes a standard 0.480-inch diameter mounting hole and offers an IP40 protection rating for sealing at sea level. Operating temperature ranges from 0°C to 65°C. The switch is widely used across industries including defense, aerospace, medical, automation, signaling, communications, testing, and industrial applications.
Eaton Electronics XTD2C2A Industrial toggle switch Specifications:
- Single-pole rating: 20 A at 125 Vac; 10 A at 277 Vac; 3/4 hp 125-250 Vac
- Double-pole rating: 20A at 125 Vac; 10 A at 277 Vac; 1-1/2 hp 125-250 Vac
- Available circuits: PST, 1PDT, 2PST, 2PDT
- Terminal types: Brass screw, brass solder lugs, brass nickel-plated 0.250-inch spade
- Hardware included: Zinc nickel-plated knurled nut, zinc nickel plated hex nut
- Mounting means: Threaded bushing 12.0 +0.1/-0 mm; 16.5 +1/-1 mm
- Keyway: 1.8 mm located in DOWN position
- Base material: Thermoset molding material
- Finish: Bright nickel-plated toggle lever and bushing
- Contact mechanism: Slow-make/slow-break butt contact
- Contact resistance: 50 ohm maximum
- Dielectric strength: AC 1500 V, 1 minute
- Operating temperature: 0-65 °C
- Insulation resistance: DC 500 V, 100M ohm minute
- Protection rating: IP40 at sea level
Buy the Eaton XTD2C2A – Reliable Toggle Switch for Industrial Applications
Order the Eaton industrial toggle switch XTD2C2A online today to ensure robust performance in industrial, automation, and aerospace applications. Designed for high current loads up to 20A at 125V and 10A at 277V, it features a durable thermoset body, nickel-plated contacts, and a standard 0.480-inch mounting hole for easy installation. Suitable for demanding environments, the switch supports multiple circuit configurations including SPST, DPST, and DPDT, with excellent dielectric and insulation properties. Perfect for control panels, machinery, and equipment requiring reliable switching solutions.
Get Eaton XTD2C2A today—built for precision and long-lasting durability in demanding environments.
