Eaton Electronics 7300K38 Military Toggle Switch
The 7300K38 is a sealed SPST non-illuminated toggle switch featuring an ON-None-OFF configuration with solder lug terminals. Designed to meet military standards (MIL-S-83731), it is rated for heavy-duty AC applications. The switch includes a silicone rubber lever seal between the lever and bushing, providing protection against contaminants such as dust, sand, and water. Its fully enclosed mechanism enhances durability and resistance to environmental ingress. Available in both standard toggle and lever lock versions, the switch has all-metal parts plated for corrosion resistance and circuit designations stamped on the side. It operates within a temperature range of -17.8°C to 65.6°C, suitable for defense, military, aerospace, and industrial applications.
Eaton Electronics 7300K38 Military Toggle Switch Specifications:
- Ratings: Heavy-duty AC applications, MIL-S-83731 compliance, SPST non-illuminated, ON-None-OFF configuration, solder lug terminals
- Electrical Rating: 10A at 250 Vac, 15A at 125 Vac
- Environmental Sealing: Silicone rubber lever seal, IP67 rated against water and dust ingress
- Circuit Standards: MIL-S-83731, fully enclosed metal parts plated for corrosion resistance, environmental durability
- Operating Range: -17.8°C to 65.6°C (0°F to 150°F)
- Mechanical Details: All-metal construction, circuit designations stamped on side, available with standard toggle or lever lock
- Physical Dimensions: 0.468 inch (11.89 mm) bushing diameter, 1.0 inch (25.4 mm) length, 1.0 inch (25.4 mm) height
- Mounting: One-hole panel mount with optional cheese head screw
- Materials: Zinc-plated steel components, thermoset plastic base, brass terminals
- Standards: MIL-S-83731, CSA Certified, UL Recognized

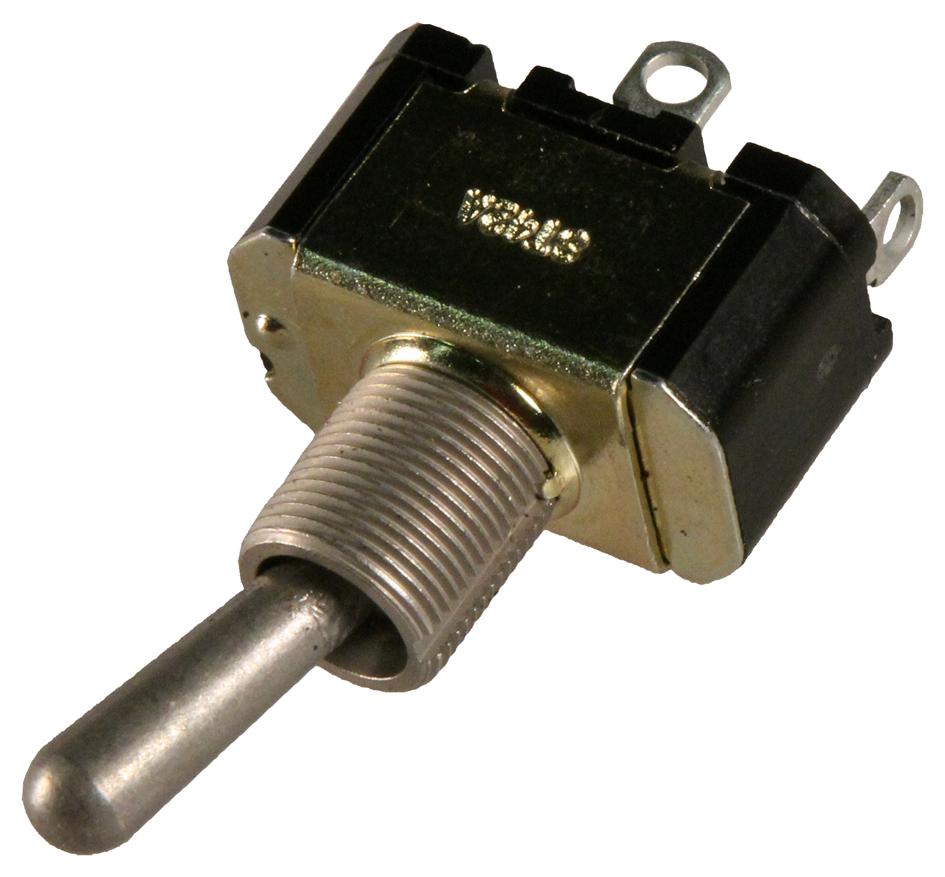

Buy the Eaton 7300K38 U–2013 Reliable Military Toggle Switch for Industrial Applications
Purchase the Eaton military toggle switch today for reliable performance in demanding applications. Designed according to MIL-STD standards, it features IP67 sealing with a silicone rubber lever seal for dust and water resistance. The switch supports heavy-duty AC ratings up to 15A at 125 Vac and 10A at 250 Vac, making it ideal for defense, aerospace, and industrial uses. It ensures durability with corrosion-resistant plated metal parts, full environmental sealing, and easy one-hole mounting. Perfect for military equipment, industrial machinery, or outdoor applications requiring robust switching solutions.
Get Eaton 7300K38 switch today—built for durability and resistant to harsh environments in military and industrial equipment.
Frequently Asked Questions
Where can I buy Eaton Electronics 7300K38?
You can click on the BUY or RFQ button to purchase 7300K38 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7300K38?
You can download the 7300K38 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7300K38?
Eaton Electronics
