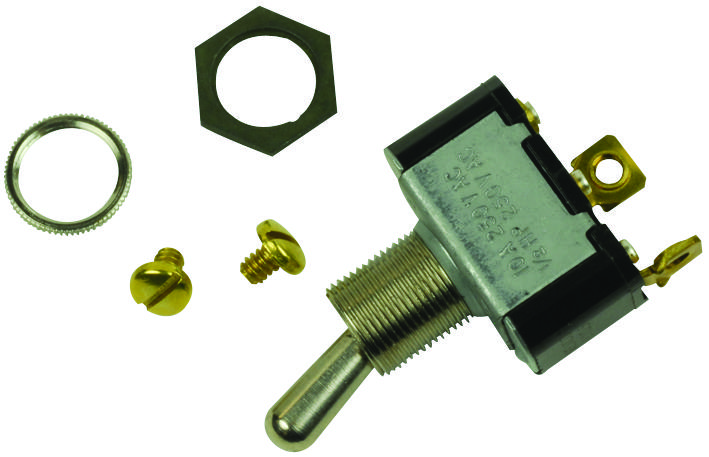

Eaton Electronics 7506K4 General Purpose Toggle Switch
The 7500 series general-purpose toggle switch offers a wide range of features and design options suitable for industrial and automation applications. It includes various terminal types such as screw terminals, solder lug terminals, and 0.25-inch spade terminals. The switch features short or tall bushings, hardware-furnished assembly, a rotatable keyway, lever seals for dust and moisture resistance, and reversing jumpers (not compatible with three independent ON circuits). Its robust construction and versatile options make it ideal for control panels, machinery, and equipment requiring reliable switching in demanding environments.
Eaton Electronics 7506K4 General Purpose Toggle Switch Specifications:
- Ratings: Available for 125 Vac, 250 Vac, and 3/4 hp loads, with resistive and inductive ratings specified.
- Terminals: Brass screw terminals for #6-32 x 6.35 mm (0.250 in) pan head screws, solder lug terminals, and 0.25-inch spade terminals.
- Mounting: Threaded bushing with 0.468 inches diameter, 32 threads per inch, with optional short or tall bushings.
- Operating Temperature: -17.8°C to 65.6°C (0°F to 150°F).
- Material: Thermoset molded base, brass hardware, with lever seals for dust and moisture resistance.
- Dimension: Bushings available in short (11/32 inch) and tall (15/32 inch or 11/16 inch), with terminal length options, and rotatable keyway for flexible mounting.
- Certifications: UL Recognized, CSA Certified, RoHS Compliant.
Buy the Eaton Series 7500 General Purpose Toggle: Part 7506K4
Order the Eaton 7506K4 general purpose toggle switch online today to enjoy reliable performance in industrial panels, machinery, and automation. This switch features multiple terminal options, sealed lever designs for dust and moisture resistance, and versatile mounting Bushings including short and tall varieties. Designed to handle resistive and inductive loads with ratings up to 125 Vac and 250 Vac, it ensures durability and flexible installation in demanding environments. Trust Eaton for control components that deliver long-lasting performance and safety.
Get Eaton 7506K4 today—built for reliable control in industrial equipment and automation systems.
Frequently Asked Questions
Where can I buy Eaton Electronics 7506K4?
You can click on the BUY or RFQ button to purchase 7506K4 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7506K4?
You can download the 7506K4 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7506K4?
Eaton Electronics
