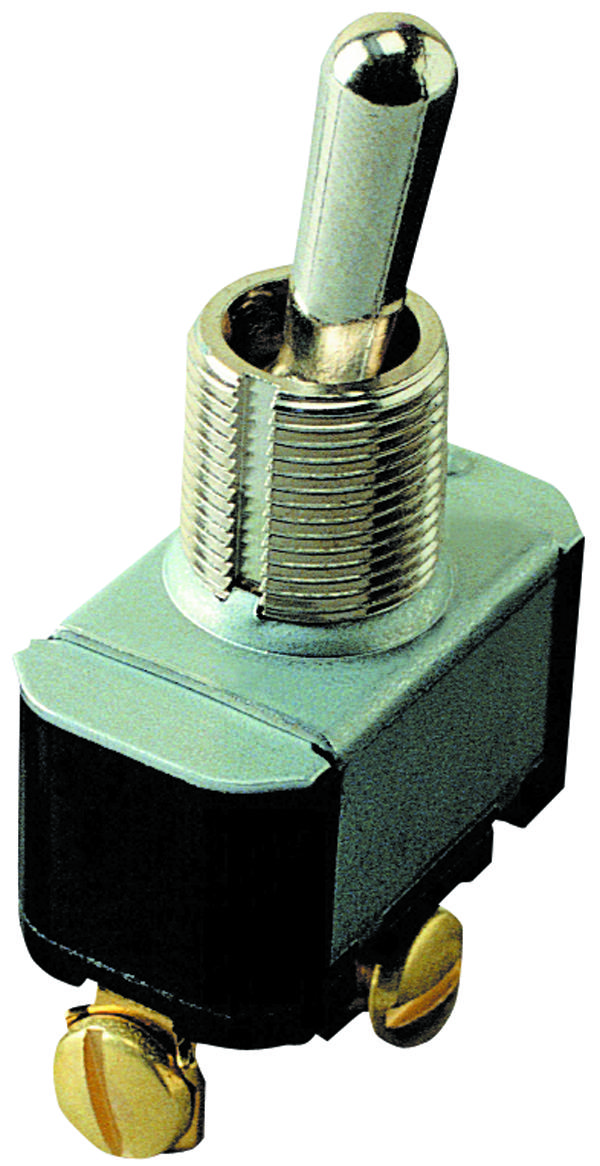

Eaton Electronics 7546K36 Toggle Switch
The 7546K36 is a single-pole single-throw SPST general-purpose AC toggle switch featuring brass screw termination, a bright nickel-plated lever, and a thermoset base. It has an 11.91mm bushing length, slow-make/slow-break contacts, and a 180° rotation capability via its keyway. The switch includes a lever seal and withstands at least 1000Vrms dielectric voltage, making it ideal for consumer electronics, instrumentation, communications, medical devices, and commercial applications requiring reliable on/off switching and high dielectric strength.
Eaton Electronics 7546K36 Toggle Switch Specifications:
- Ratings: 125 Vac, 250 Vac; 3/4 hp at 250 Vac
- Contact mechanism: Slow-make/slow-break butt contact
- Terminal types: Brass screw terminals accepting #6-32 x 6.35 mm (1/4 in) pan head screws, brass solder lugs, or #5-40 x 1/8 in spade
- Base material: Thermoset molding
- Mounting: 11.91 mm bushing length, 0.468 in diameter, keyway 0.030 x 0.076 in deep
- Finish: Bright nickel-plated lever and bushing
- Dielectric withstand voltage: Minimum 1000 Vrms
- Operating temperature: 0° to 150°F (-17.8° to 65.6°C)
- Physical dimensions: Approximate - 0.469 in height (11.91 mm), 0.500 in length (12.70 mm), width varies with mounting type
- Additional features: 180° lever rotation, lever seal included, suitable for consumer, industrial, and medical environments
Buy the Eaton 7546K36 – Reliable Toggle for Industrial Applications
Purchase the Eaton 7546K36 toggle switch online today to ensure reliable on/off control for your electrical applications. This durable, nickel-finish switch features brass terminals, a 11.91 mm bushing, and high dielectric strength, making it suitable for consumer electronics, instrumentation, medical devices, and industrial automation. With its long-lasting design, slow-make/break contacts, and comprehensive certification including UL recognition, this switch ensures safety, performance, and flexibility in your projects. Get yours now for quick delivery and trusted quality.
Order your Eaton 7546K36 toggle switch today and give your projects the dependable quality they deserve, whether for consumer electronics or industrial controls.
Frequently Asked Questions
Where can I buy Eaton Electronics 7546K36?
You can click on the BUY or RFQ button to purchase 7546K36 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7546K36?
You can download the 7546K36 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7546K36?
Eaton Electronics
