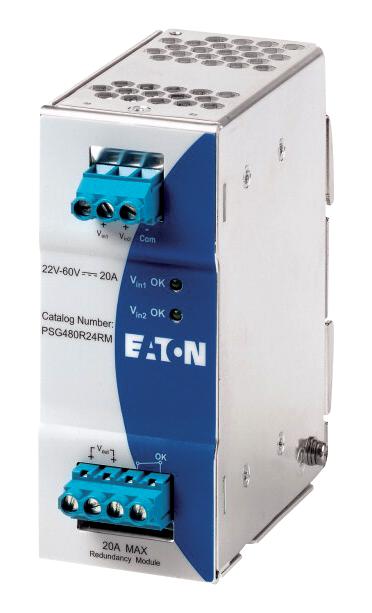

Eaton Electronics PSG480R24RM Redundancy Module
The PSG480R24RM is a redundancy module designed for PSG power supply units supporting 20 A. It ensures reliable power distribution by efficiently decoupling parallel connected power supplies for added redundancy and system stability. Compatible with 22-60V DC input, it features relay contact status indicators, high efficiency of 97%, and an aluminum housing that withstands harsh environments. Suitable for industrial automation, this module offers easy screw connection terminals, a compact size of 121mm height and 50mm width, and a protection class of IP20, making it ideal for critical power backup applications.
Eaton Electronics PSG480R24RM Redundancy Module Specifications:
- Input voltage range: 22-60V DC
- Nominal input voltage: 24-48V DC
- Rated output current: 20A
- Output character: Relay contact closed if Vint & Vin2 > 18 V +/- 5% and < 30 V
- Efficiency: 97%
- Housing: Aluminum
- Protection class: IP20
- Height: 121mm
- Width: 50mm
- Depth: 122mm
- Weight: 0.38kg
- Terminations: Screw connection
- Tightening torque: 7 Nm
- Ambient air temperature range: -40°C to +80°C
- Vibration resistance: 10-500 Hz at 30 m/s²
- Mechanical shock resistance: 30g in all directions
- Standards: UL, CSA, IEC/EN 61439, EN 60950
- Pollution degree: 2
- Safety features: Insulation voltage 3000V
- Degree of Protection: IP20
- Power dissipation: 3W
- Rated operational current: 20A
Buy the Eaton Series Redundancy Module: PSG480R24RM
Secure your industrial power systems with the Eaton PSG480R24RM redundancy module. Designed for PSG power supplies supporting 20A, it offers high efficiency, durable aluminum housing, and easy screw terminal connections. Ideal for critical applications requiring reliable power backup, this module ensures seamless operation with relay status indicators and compact size. Protect your equipment from power failures and maintain system stability by ordering online today to guarantee fast delivery and expert support for your installation needs.
Order your Eaton Series PSG480R24RM redundancy module today and ensure your critical power systems have the reliable backup they need.
