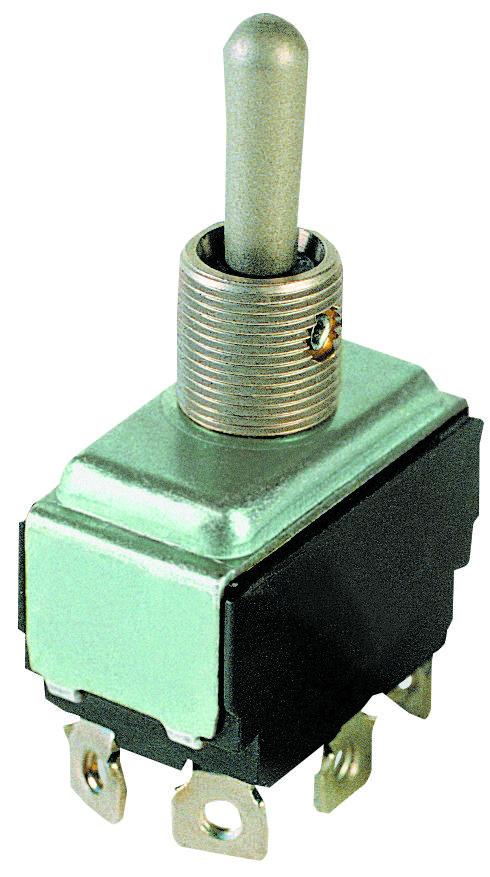

Eaton Electronics 7561K6 AC Toggle Switch
The 7561K6 is a double-pole single-throw AC toggle switch with brass spade terminals and an ON-NONE-OFF contact arrangement. It features a bright nickel-plated toggle lever and bushing, and is mounted via a thermoset molding base with an 11.91mm bushing length. Designed for diverse applications, it employs slow-make/slow-break contacts and a 180° rotating keyway for secure positioning. The switch provides a minimum dielectric withstand voltage of 1000Vrms and is suitable for consumer electronics, instrumentation, communications, medical, and industrial equipment, ensuring reliable operation in demanding environments.
Eaton Electronics 7561K6 AC Toggle Switch Specifications:
- Ratings: AC 125 Vac, 3/4 hp, 20A
- Contact Mechanism: Slow-make/slow-break butt contact
- Terminal Type: Brass spade
- Base Material: Thermoset molding
- Bushing Length: 11.91 mm
- Finish: Bright nickel-plated lever and bushing
- Dielectric Withstand: 1000Vrms minimum
- Operating Temperature Range: 0° to 150°F (-17.8°C to 65.6°C)
- Mounting: 11.91 mm bushing with 180° keyway
- Material: Brass and nickel finish
- Standards: UL recognized, CSA certified
- Application: Consumer electronics, instrumentation, communications, medical, industrial
Buy the Buy Eaton AC Toggle Switch Part Number 7561K6 Online
Order the Eaton 7561K6 AC toggle switch online today and enjoy fast delivery, reliable operation, and versatile application suitability. Perfect for consumer electronics, industrial machinery, and communication devices, this switch features brass spade terminals, a nickel-plated finish, and a thermoset base for enhanced durability. Its adjustable mounting with an 11.91 mm bushing length and 180° keyway ensures secure installation. Designed with slow-make/slow-break contacts and a dielectric withstand of 1000Vrms, it guarantees safe, dependable switching performance in diverse environments.
Buy Eaton 7561K6 toggle switch now and experience reliable performance with secure mounting and high durability for demanding applications.
Frequently Asked Questions
Where can I buy Eaton Electronics 7561K6?
You can click on the BUY or RFQ button to purchase 7561K6 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7561K6?
You can download the 7561K6 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7561K6?
Eaton Electronics
