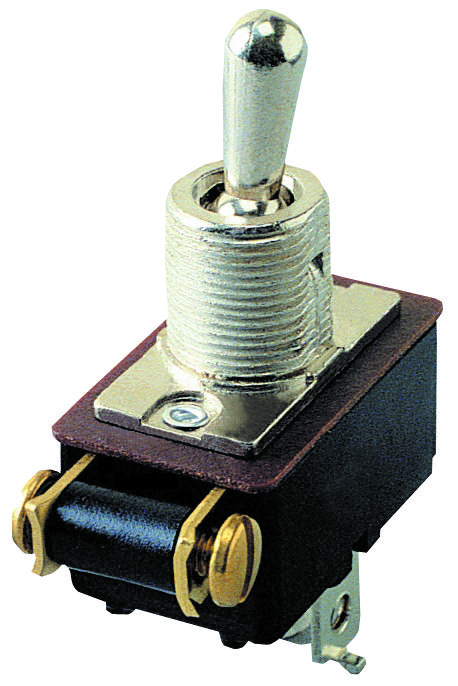

Eaton Electronics 8396K107 Toggle Switch
The 8396K107 is a single-pole single-throw (SPST) toggle switch featuring on-none-off action contacts and screw termination. This general-purpose AC/DC rated switch is non-illuminated and designed for industrial applications. It has a threaded bright nickel-plated bushing and a bat lever. The switch employs a quick-make/quick-break contact mechanism, providing high-speed operation that reduces contact pitting and arcing. Its self-cleaning and wiping contact action ensures reliable operation and positive contact engagement.
Eaton Electronics 8396K107 Toggle Switch Specifications:
- Ratings: AC/DC rated, single-pole, on-none-off action, screw terminals, non-illuminated
- Contacts: Quick-make/quick-break mechanism, silver-plated copper contacts
- Bushing: Threaded bright nickel-plated brass, diameter 0.468 in (11.88 mm)
- Lever: Bat type, with silicone rubber seal for moisture resistance
- Mounting hole: 0.470 in (11.94 mm), standard 15/32-32 NS-2A thread
- Operating temperature: 0° to 150°F (-17.8° to 65.6°C)
- Dielectric withstand: 1000V AC minimum
- Dimensions: Length approximately 1.310 in (33.27 mm), width 0.210 in (5.33 mm)
- Material: Colored thermoplastic paddle lever, zinc-nickel plated steel parts
- Standards: UL Recognized, RoHS Compliant
Buy the Buy Eaton Toggle Switch Part Number 8396K107 Online
Purchase Eaton's 8396K107 toggle switch online today for industrial applications. This high-quality, AC/DC rated switch features quick-make contact mechanism, durable nickel plating, and moisture-resistant design. Its reliable operation ensures safety and efficiency in your machinery. With screw terminals and a standard 15/32-32 NS-2A threaded bushing, installation is straightforward. Whether you need a typical switch for automation or heavy-duty control, order now and optimize your work environment with premium quality and dependable performance.
Order your Eaton 8396K107 durable toggle switch today and enhance your industrial equipment with reliable, high-speed contact operation.
Frequently Asked Questions
Where can I buy Eaton Electronics 8396K107?
You can click on the BUY or RFQ button to purchase 8396K107 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 8396K107?
You can download the 8396K107 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 8396K107?
Eaton Electronics
