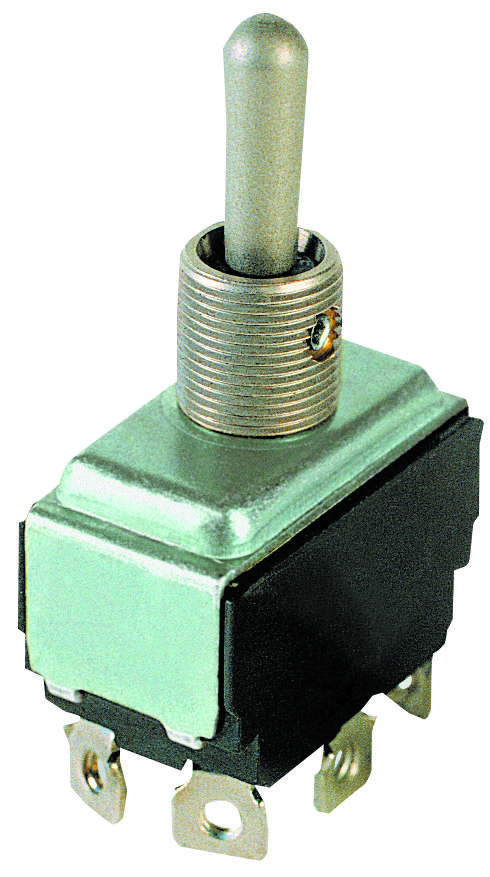

Eaton Electronics 7591K4 Industrial Toggle Switch
The 7500 series general-purpose toggle switch offers a wide range of features and versatile design options suitable for various applications. It is available with different terminal types including solder lugs, screw terminals, and 0.25-inch spade terminals. The switch options include short (11/32 inch) or tall (15/32 inch) bushings, hardware-furnished assembled units, reversing jumpers (note: not for use with three-independent ON circuits), short (15/32 inch) or tall (11/16 inch) bat lever configurations, a 180° rotated keyway, and a lever seal. This switch is ideal for industrial use.
Eaton Electronics 7591K4 Industrial Toggle Switch Specifications:
- Ratings: See Catalog Number Selection; Switch ratings at 125 Vac also apply to 28 Vac
- Contact mechanism: Slow-make/slow-brake butt contact
- Terminal types: Screw terminals—brass designed to accept #8-32x 3/16 binding head screws; Solder lug terminals—tintillate-plated brass; Spade terminals—combi-term—brass
- Base material: Thermoset molding material
- Mounting means: Threaded bushing 0.468 in (11.89 mm) dia, 32 threads/inch; Keyway—0.068 x 0.035 in (1.73 x 0.89 mm) deep
- Hardware supplied: 1 hexagon locknut, 1 bright nickel-plated knurled facenut
- Finish: Bright nickel-plated toggle lever and bushing
- Operating temperature range: 0° to 150°F (-17.8° to 65.6°C)
Buy the Buy Eaton Toggle Switch Part Number 7591K4 Online
Experience the reliable performance of Eaton's industrial toggle switch 7591K4, featuring versatile terminal options, bushings, and lever designs. Ideal for industrial, automation, and machinery applications, this switch offers durable construction with a bright nickel-plated finish. Its broad ratings support various operating voltages, making it suitable for heavy-duty environments. Purchase online today for fast delivery, proven quality, and supporting accessories like mounting hardware, seals, and terminal screws for easy installation and maintenance.
Get Eaton toggle switch 7591K4 today—built for reliability and versatile industrial applications.
Frequently Asked Questions
Where can I buy Eaton Electronics 7591K4?
You can click on the BUY or RFQ button to purchase 7591K4 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7591K4?
You can download the 7591K4 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7591K4?
Eaton Electronics
