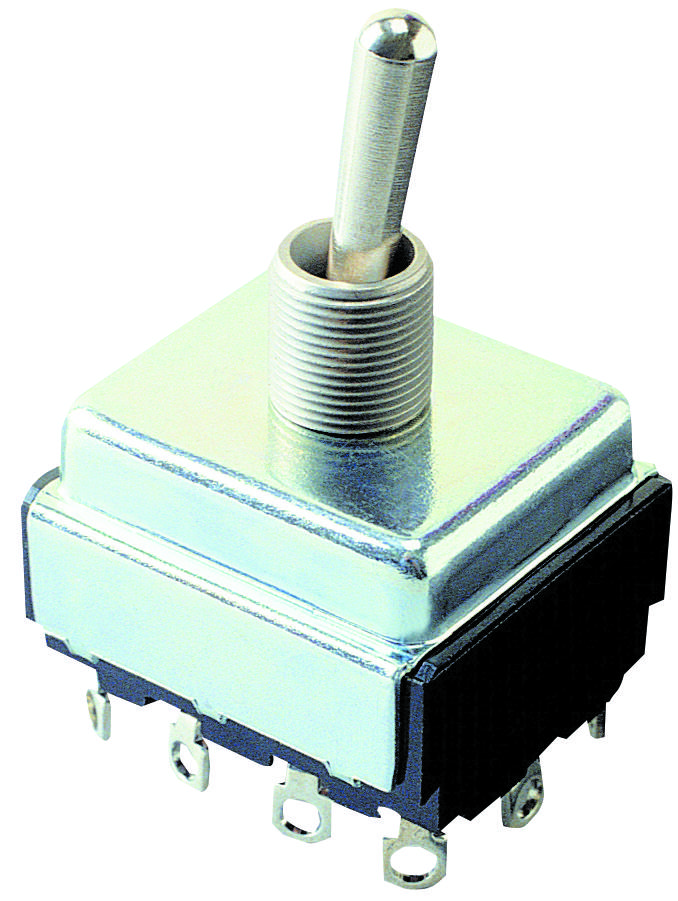

Eaton Electronics 7700K3 general purpose toggle switch
The 7700 series general purpose toggle switch offers high feature variety and design flexibility for industrial and electronic applications. It can be configured with screw terminals, solder lugs, or 0.25-inch spade terminals, making it adaptable for different wiring needs. Available with short (11/32 inch) or tall (15/32 inch) bushings, the switch includes hardware such as nuts and mounting options. Optional reversing jumpers, 180° rotate keyways, and lever seals enhance its robustness for control panels, automation, and machinery. Its solid thermoset construction ensures durability and reliable performance in tough environments.
Eaton Electronics 7700K3 general purpose toggle switch Specifications:
- Ratings: 20A at 125 Vac, 10A at 277 Vac; 3/4 hp 125-250 Vac
- Contact mechanism: Slow-make/slow-brake butt contact
- Terminal types: Screw terminals (brass), solder lug (brass), and 0.25 in spade terminals
- Base material: Thermoset molding material
- Mounting means: 0.468 in (11.89 mm) diameter threaded bushing, 32 threads/inch
- Keyway: 0.068 x 0.035 in (1.73 x 0.89 mm) deep, anti-rotation feature
- Hardware: Hexagon locknut, knurled facenut, and optional reversing jumpers
- Levers: Short (11/32 in) and tall (15/32 in) options, including lever seals
- Operating temperature range: 0° to 150°F (-17.8° to 65.6°C)
- Dimensions: Bushing diameter 0.468 in; length varies with lever style
- Certifications: UL Recognized, CSA Certified
Buy the Buy Eaton General Purpose Toggle Switch Part Number 7700K3 Online
Purchase the Eaton series 7700 general purpose toggle switch online to ensure reliable performance in industrial control, automation, and machinery applications. This versatile switch features multiple wiring options, including screw terminals, solder lugs, and spade connections, along with various bushing heights for design flexibility. It is built from durable thermoset material, rated up to 20A at 125 Vac, ideal for demanding environments. With a robust construction, hardware options, and optional lever seals, it provides dependable operation for control panels, industrial automation, and equipment upgrades. Buy now for fast delivery and quality assurance.
Order your Eaton series 7700 toggle switch today and equip your industrial and automation projects with dependable quality and flexible wiring options.
Frequently Asked Questions
Where can I buy Eaton Electronics 7700K3?
You can click on the BUY or RFQ button to purchase 7700K3 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7700K3?
You can download the 7700K3 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7700K3?
Eaton Electronics
