Eaton Electronics 8280K115 Toggle Switch
The 8280K115 is a SPST panel-mount, non-illuminated toggle switch featuring an ON-None-OFF switch configuration and solder-lug terminals. It employs a quick-make and quick-break contact mechanism, providing high-speed operation that minimizes contact pitting and reduces arcing. The switch's self-cleaning and wiping contact action ensures reliable contact closure. It is particularly suitable for use in small motor control applications. Operating temperature ranges from -17.8°C to 65.6°C. This switch is ideal for industrial applications.
Eaton Electronics 8280K115 Toggle Switch Specifications:
- Ratings: 125 Vac, 20A; 250 Vac, 15A; 3/4 hp 250 Vac
- Contact mechanism: Quick-make and quick-break
- Contact material: Silver-plated copper
- Terminal types: Solder lug, brass
- Base material: Thermoplastic
- Mounting: Panel-mount, threaded bushing 0.468 in (11.89 mm) dia, 32 threads/inch
- Keyway: 0.030 in (0.76 mm) deep, provides anti-rotation
- Hardware: Hex nut, lockwasher included
- Operating temperature: -17.8°C to 65.6°C
- Dielectric withstand: 1000V ms minimum
- Dimensions: Diameter 0.210 in (5.33 mm), overall length 1.310 in (33.27 mm), mounting hole 0.468 in (11.89 mm)

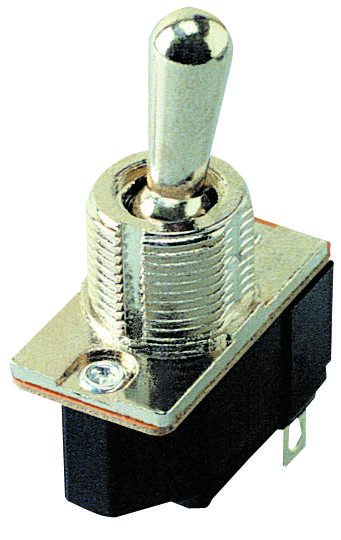

Buy the Eaton Series 8280K115 SPST Toggle Switch: 8280K115
Order the Eaton 8280K115 toggle switch online today to ensure fast delivery and reliable performance. Featuring a robust quick-make/quick-break mechanism, it provides high-speed switching suitable for small motor controls. Its durable construction includes silver-plated copper contacts and thermoplastic housing, operating efficiently from -17.8°C to 65.6°C. Ideal for industrial settings, this switch offers easy panel mounting with threaded bushing and secure hardware, ensuring long-lasting service in demanding environments.
Buy Eaton 8280K115 toggle switch now and experience unmatched reliability and performance in industrial motor control applications.
Frequently Asked Questions
Where can I buy Eaton Electronics 8280K115?
You can click on the BUY or RFQ button to purchase 8280K115 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 8280K115?
You can download the 8280K115 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 8280K115?
Eaton Electronics
