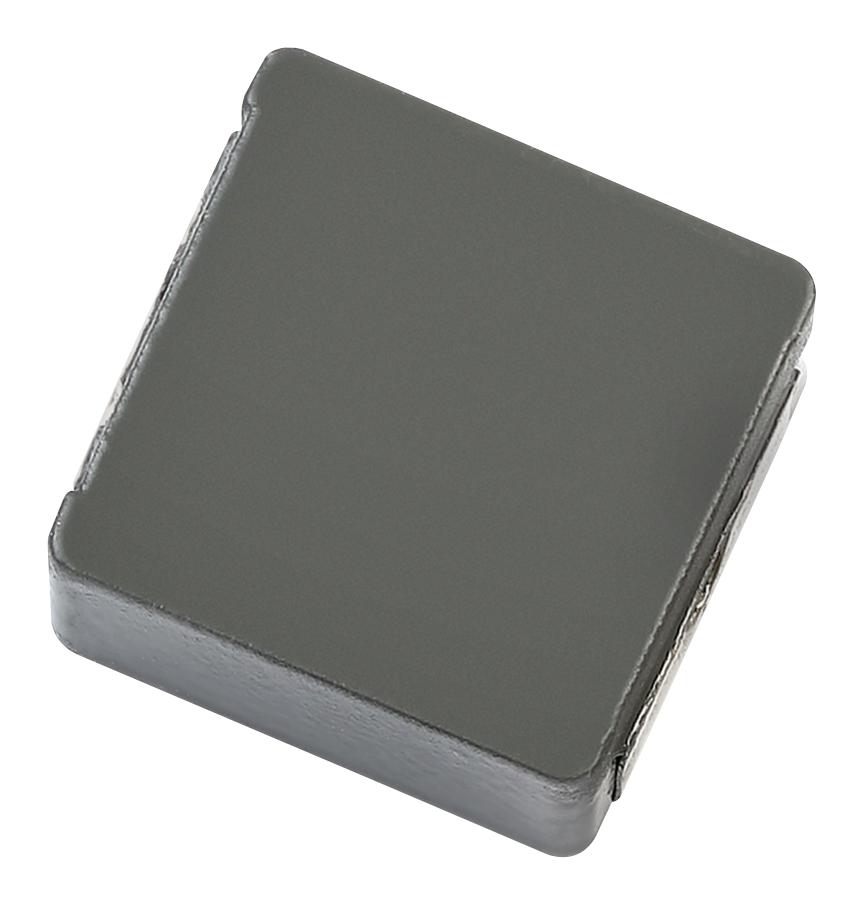

Eaton Electronics HCMA0503100R Power Inductor
The power inductors are automotive-grade, high current components with low core losses and magnetically shielded design for low EMI. Qualified to AEC-Q200 Grade 3, they support frequency ranges up to 1 MHz with inductance values from 0.2 pH to 22 pH and current ratings from 1.9 A to 22 A. Featuring a compact 5.5 mm x 5.3 mm footprint and 3.0 mm height, they use iron powder cores, are halogen-free, lead-free, and RoHS compliant. These inductors are suitable for body electronics, driver assistance, infotainment, and safety systems in automotive applications.
Eaton Electronics HCMA0503100R Power Inductor Specifications:
- Inductance range: 0.2 pH to 22 pH, ±20% tolerance
- Current range: 1.9 A to 22 A
- Core material: Iron powder
- Package size: 5.5 mm x 5.3 mm footprint, 3.0 mm height
- Temperature range: -55°C to +125°C (operating and storage)
- Compliance: RoHS, halogen-free, lead-free
- Frequency range: Up to 1 MHz
- DCR (max): varies from 11.5 mo to 70.6 mo depending on inductance
- Soldering: Compatible with J-STD-020D reflow profile
- Packaging: Tape and reel, 2000 parts per reel
- Application: Automotive body electronics, safety, driver assistance, infotainment
Buy the Buy Eaton HCMA0503 Part Number 100R Online
Discover the high-quality Eaton automotive power inductor SeriesHCMA0503 100R, engineered to deliver exceptional current handling and low electromagnetic interference. With a compact surface-mount design, it fits perfectly into automotive control modules, safety systems, and infotainment units. RoHS compliant, lead-free, and halogen-free, these inductors withstand extreme temperatures, ensuring long-term durability and optimal performance. Shop online now and ensure reliable power management for your automotive projects with Eaton’s trusted inductors designed for demanding environments.
Order your Eaton SeriesHCMA0503 100R power inductor today and enhance your automotive electronics with high current capacity and low EMI reliability.
Frequently Asked Questions
Where can I buy Eaton Electronics HCMA0503100R?
You can click on the BUY or RFQ button to purchase HCMA0503100R from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part HCMA0503100R?
You can download the HCMA0503100R datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of HCMA0503100R?
Eaton Electronics
