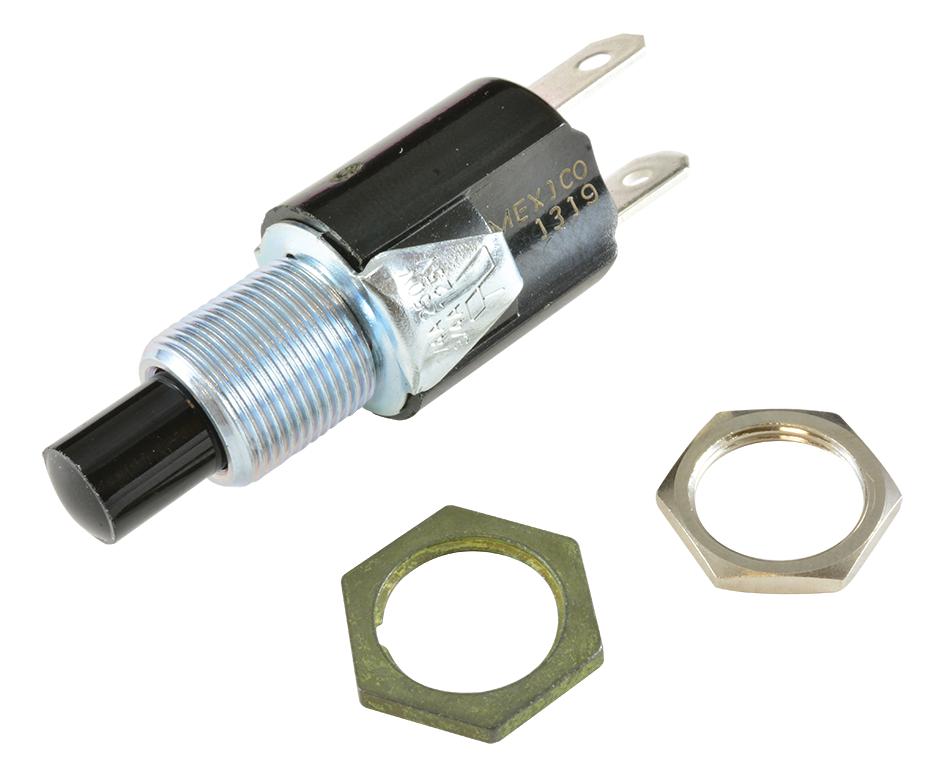

Eaton Electronics 8411K10 AC Pushbutton Switch
The 8411K10 is a single-pole single-throw AC pushbutton switch that is non-illuminated and rated for 15,125 Vac with a silver-plated copper contact. It features spade terminals, a black nylon housing, and a threaded bushing for panel mounting. Designed for momentary operation, it offers a slow-make/slow-break contact profile, light operating force, and a travel of 0.19 in. Its operating temperature ranges from -17.8°C to 65.6°C, making it suitable for consumer electronics, instrumentation, communication, medical, and commercial equipment applications.
Eaton Electronics 8411K10 AC Pushbutton Switch Specifications:
- Ratings: 15,125 Vac
- Contact Material: Silver-plated copper
- Mounting: Threaded bushing, 0.468 inch diameter, 32 threads per inch
- Operating Temperature: -17.8°C to 65.6°C
- Contact Profile: Slow-make/slow-break
- Travel: 0.19 in (4.83 mm)
- Terminals: Spade (0.250 inch), solder, or screw type
- Mechanical Life: Not specified
- Electrical Life: Not specified
Buy the Eaton Series 580 AC Pushbutton: 8411K10
Order the Eaton Series 580 8411K10 AC pushbutton switch online today to ensure rapid delivery from authorized distributors. This single-pole, non-illuminated switch provides dependable ON-OFF control for various equipment in industrial, medical, and commercial environments. Featuring durable silver-plated copper contacts, a threaded bushing mounting system, and a travel of 0.19 inches, it operates effectively within a temperature range of -17.8°C to 65.6°C. Perfect for sensing, instrumentation, and communication devices, this switch guarantees consistent operation and long service life in demanding conditions.
Buy Eaton Series 580 AC Pushbutton now and experience reliable contact performance in demanding industrial and commercial applications.
