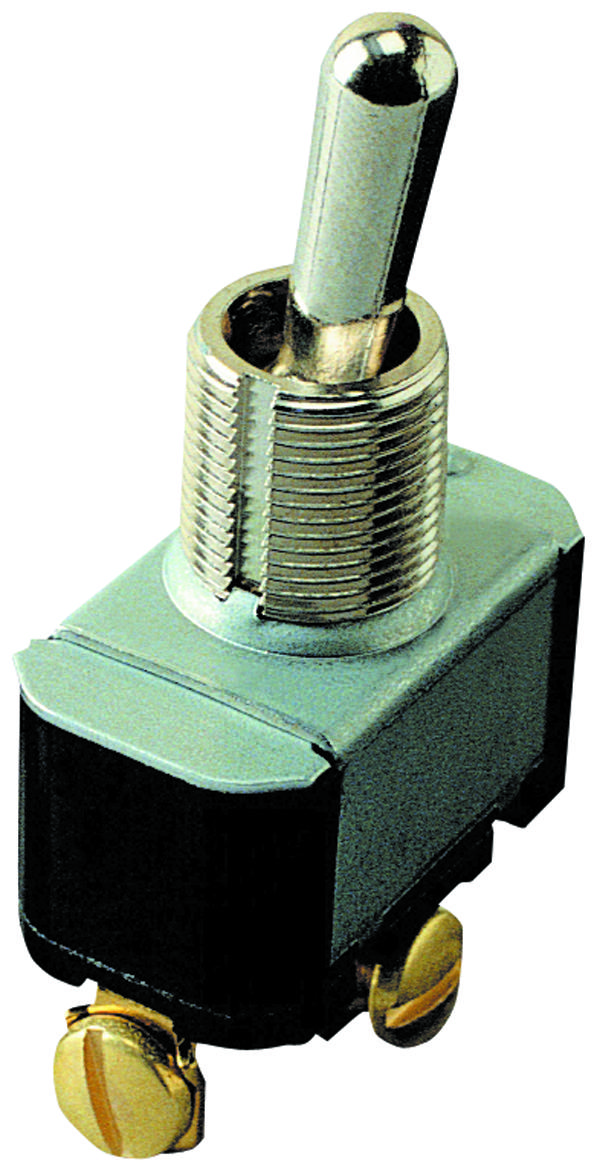

Eaton Electronics 7580K6 General Purpose Toggle Switch
The 7580K6 is a single-pole, single-throw (SPST) general-purpose toggle switch with solder lug terminals. It features a slow-make/slow-break contact mechanism, thermoset molded base, and is rated for AC voltage applications. The switch is designed for durability and flexibility, suitable for various industrial applications. It offers a minimum dielectric strength of 1000V and operates within a temperature range of 0 to 150°F.
Eaton Electronics 7580K6 General Purpose Toggle Switch Specifications:
- Ratings: See product selection tables; Switch ratings at 125 Vac also apply to 28 Vac
- Contact mechanism: Slow-make/slow-brake butt contact
- Terminal types: Solder lug—brass with 0.085-0.090 in diameter hole
- Base material: Thermoset molding material
- Mounting means: Threaded bushing 0.468 in diameter, 32 threads/inch; Keyway 0.068 x 0.035 in
- Hardware supplied: Hexagon locknut, hex nut, and sealing options available
- Finish: Bright nickel-plated toggle lever and bushing
- Dielectric withstand: 1000V minimum
- Operating temperature range: 0°F to 150°F
- Dimensions: Approximate diameter 0.210 in, length 1.310 in, keyway depth 0.030 in
- Terminal spacing: 0.085-0.090 in diameter holes for electrical connections
Buy the Eaton Series General Purpose Toggle: 7580K6
Order the Eaton general purpose toggle switch 7580K6 online today and benefit from high-quality construction, reliable performance, and versatile AC ratings. Designed for industrial durability, this switch features solder lug terminals, a thermoset molded base, and operates within a temperature range of 0 to 150°F. Its slow-make/slow-break contact mechanism ensures dependable switching in demanding environments. Secure your supply now for guaranteed performance, easy installation, and a cost-effective solution for your automation and control needs.
Buy Eaton 7580K6 now and experience unmatched reliability and performance with versatile, durable switch design for industrial applications.
Frequently Asked Questions
Where can I buy Eaton Electronics 7580K6?
You can click on the BUY or RFQ button to purchase 7580K6 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7580K6?
You can download the 7580K6 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7580K6?
Eaton Electronics
