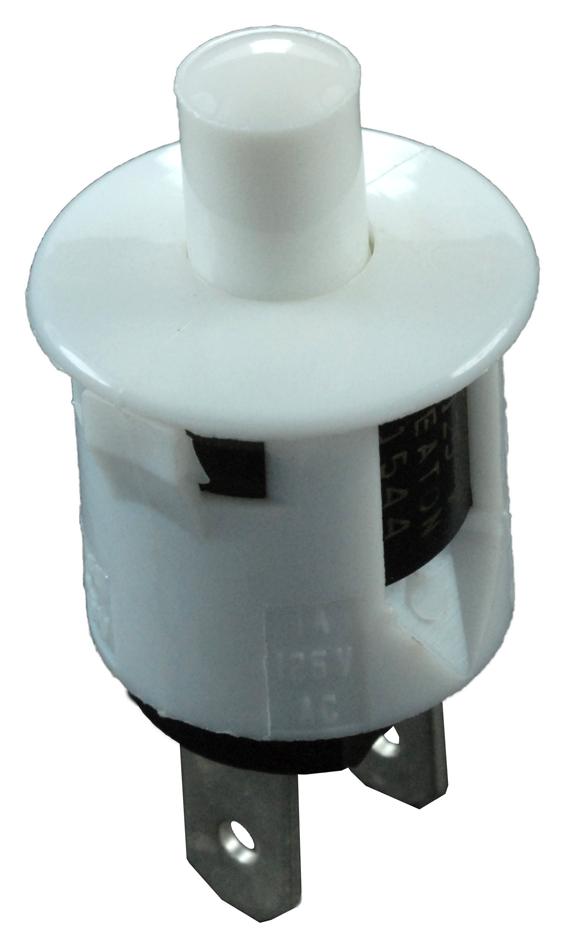

Eaton Electronics 8424K1 Sealed Pushbutton
Eaton's vehicle control sealed pushbutton switch offers durable, IP64-rated sealing with options in multiple colors for varied applications including industrial, safety, and recreational vehicles. It features a standard circuit OFF-ON momentary action, enhances application identification with color options, and includes mounting hardware and a rubber gasket. Rated for 3A at 250 Vac, 6A at 125 Vac, with a mechanical life of 1,000,000 cycles, it is suitable for demanding environments such as fire trucks and equipment controls, fitting with quick-connect spade terminals and robust construction.
Eaton Electronics 8424K1 Sealed Pushbutton Specifications:
- Sealing Level: IP64
- Ratings: 3A at 250 Vac; 6A at 125 Vac
- Electrical Life: 25,000 cycles
- Mechanical Life: 1,000,000 cycles
- Mounting Hardware: Included rubber gasket and panel nut
- Terminal Types: Solder lugs, screw terminals (M2 x 4), quick-connect spade (0.189 inch)
- Operating Temperature: -25°C to 85°C
- Body Material: Durable plastic, various colors available
- Button Type: Momentary OFF-ON
- Application: HVAC, industrial equipment, safety controls, recreational vehicles
- Standards & Certification: RoHS compliant, UL Recognized
- Control Circuit: Single-pole, heavy-duty design
- Included Components: Mounting hardware and rubber gasket
- Dimensions: Approximate diameter 12.7205 mm (0.500 inch), height 18.5 mm (+0.3 mm)
Buy the Buy Eaton Sealed Pushbutton Part Number 8424K1 Online
Order the Eaton sealed pushbutton switch 8424K1 online today for reliable, IP64-rated switch solution perfect for industrial, vehicle, and safety equipment. With quick-connect terminals, robust sealing, and rated for 3A at 250 Vac, this pushbutton ensures durability and safe operation in demanding environments. The included mounting hardware simplifies installation, making it ideal for HVAC systems, emergency vehicles, and industrial machinery. Experience ease of ordering and fast delivery of top-tier control components online, enhancing your equipment's safety and efficiency.
Buy Eaton 8424K1 sealed pushbutton now and experience unmatched reliability and performance for demanding industrial and vehicle control applications.
