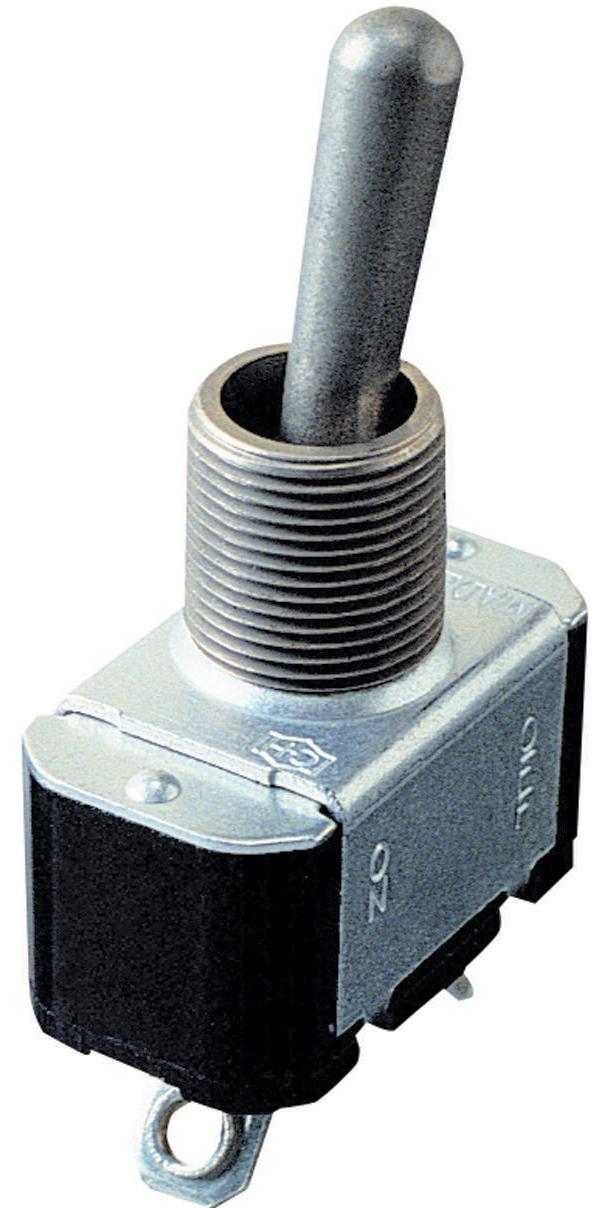

Eaton Electronics 8801K22 Military Toggle Switch
The 8801K22 is a single-pole, single-throw heavy-duty AC toggle switch engineered for military and industrial environments. It features brass screw terminals, a sealed lever to resist dust, sand, and water ingress, and a durable thermoset molded base. The fully enclosed mechanism enhances contamination resistance, while corrosion-resistant plating ensures long-lasting operation. Equipped with slow-make/slow-break contacts, it meets MIL-S-83731 standards, making it ideal for aerospace, defense, military, and industrial machinery, offering reliable switching in demanding applications.
Eaton Electronics 8801K22 Military Toggle Switch Specifications:
- Ratings: 600V ac, 3 Hp at 250V ac
- Circuits: 1PST
- Contact Mechanism: Slow-make/slow-break butt contact
- Contact Material: Movable — Silver plated copper; Stationary — Copper
- Terminal Types: Brass screw terminals designed to accept #6-32 x 6.35mm (.250”) pan head screws
- Base Material: Thermoset molding material
- Mounting Means: Threaded bushing 11.89mm (.468”) dia., 32 threads/inch with keyway 1.73 x .89mm deep
- Hardware Supplied: 1 hexagon locknut, 1 lockwasher, 1 internal tooth lockwasher
- Finish: Bright nickel plated toggle lever and bushing
- Dielectric Withstand: 1000V RMS minimum
- Operating Temperature Range: -17.8°C to +65.6°C (0°F to +150°F)
- Approvals: UL Recognized, CSA Certified
Buy the Eaton 8801K22 – Reliable Military AC Switches for Industrial Applications
Discover the Eaton 8801K22 military-grade toggle switch, engineered for demanding industrial and defense applications. This single-pole, single-throw switch features a sealed lever to prevent contamination from dust, sand, and water, ensuring dependable operation in harsh environments. Its corrosion-resistant plating and fully enclosed mechanism make it ideal for aerospace, military, and industrial machinery. Easy to mount with threaded bushing and hardware included, it offers durable, UL-recognized performance—order online today for guaranteed high-quality switching in your critical applications.
Order your Eaton 8801K22 heavy-duty military toggle switch today and enhance the reliability of your industrial, aerospace, or defense equipment with ease.
Frequently Asked Questions
Where can I buy Eaton Electronics 8801K22?
You can click on the BUY or RFQ button to purchase 8801K22 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 8801K22?
You can download the 8801K22 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 8801K22?
Eaton Electronics
