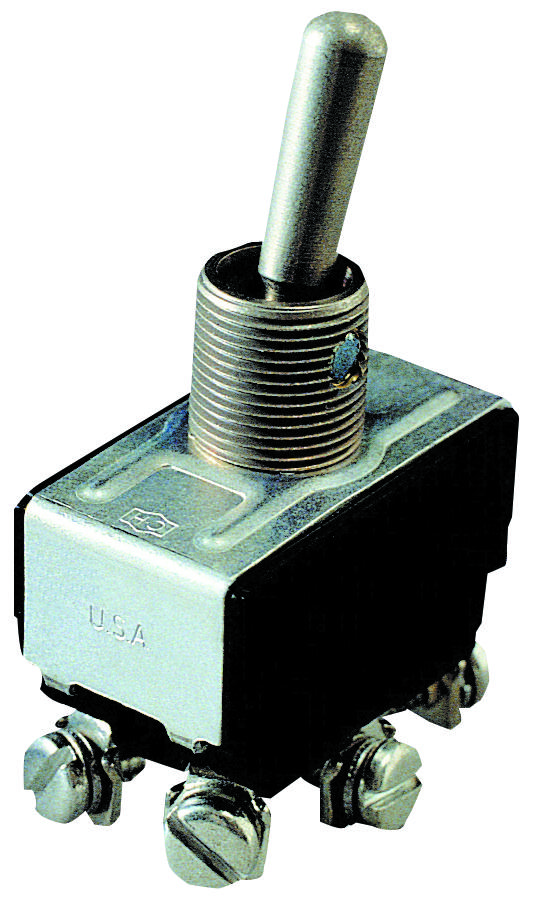

Eaton Electronics 8830K13 Heavy Duty Toggle Switch
The 8830K13 is a heavy-duty AC toggle switch featuring a double-pole double-throw (DPDT) configuration with brass screw terminals and an ON-NONE-ON switching function. This military-grade lever-sealed switch includes a momentary contact function and a thermoset molded base. Its fully enclosed mechanism provides protection against contaminants such as dust, sand, and water, with all metal parts plated for corrosion resistance. The switch employs slow-make/slow-break butt contacts and meets MIL-S-83731 standards. Suitable for defense, aerospace, medical, industrial, and communication applications.
Eaton Electronics 8830K13 Heavy Duty Toggle Switch Specifications:
- Ratings: See Catalog Number Selection; 125 Vac, 250 Vac, 3/4 hp at 250 Vac; maintained and momentary functions.
- Contact mechanism: Slow-make/slow-break butt contact for heavy-duty use.
- Terminals: Brass screw terminals designed for #6-32 x 6.35 mm (0.250 in) pan head screws, with tin-dipped finish.
- Base material: Thermoset molding for durability and electrical insulation.
- Mounting: Threaded bushing 0.468 in (11.89 mm) diameter with 32 threads/inch; includes a 0.068 x 0.035 in (1.73 x 0.89 mm) deep keyway for anti-rotation.
- Hardware: Two hexagon nuts, locking ring, and internal tooth lockwasher included, all unassembled.
- Dielectric withstand: 1000V AC minimum.
- Operating temperature: 0° to 150°F (-17.8° to 65.6°C).
- Corrosion resistance: All metal parts plated; silicone rubber lever seal prevents ingress of contaminants like dust, water, and sand.
Buy the Eaton Series Heavy Duty Toggle Switch: 8830K13
Purchase the Eaton Heavy Duty Toggle Switch 8830K13 online today for high-performance, military-grade reliability. Designed with sealed metal construction and corrosion-resistant plating, this DPDT switch meets MIL-S-83731 standards. Its robust thermoset base and integrated accessories ensure secure installation in harsh environments. Perfect for defense, aerospace, medical, and industrial applications, this switch offers both maintained and momentary actions, with versatile terminal options. Secure your equipment's performance and durability by ordering this proven, high-quality toggle switch now.
Order your Eaton Series Heavy Duty Toggle Switch 8830K13 today and give your applications the durable, military-grade protection they require.
Frequently Asked Questions
Where can I buy Eaton Electronics 8830K13?
You can click on the BUY or RFQ button to purchase 8830K13 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 8830K13?
You can download the 8830K13 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 8830K13?
Eaton Electronics
