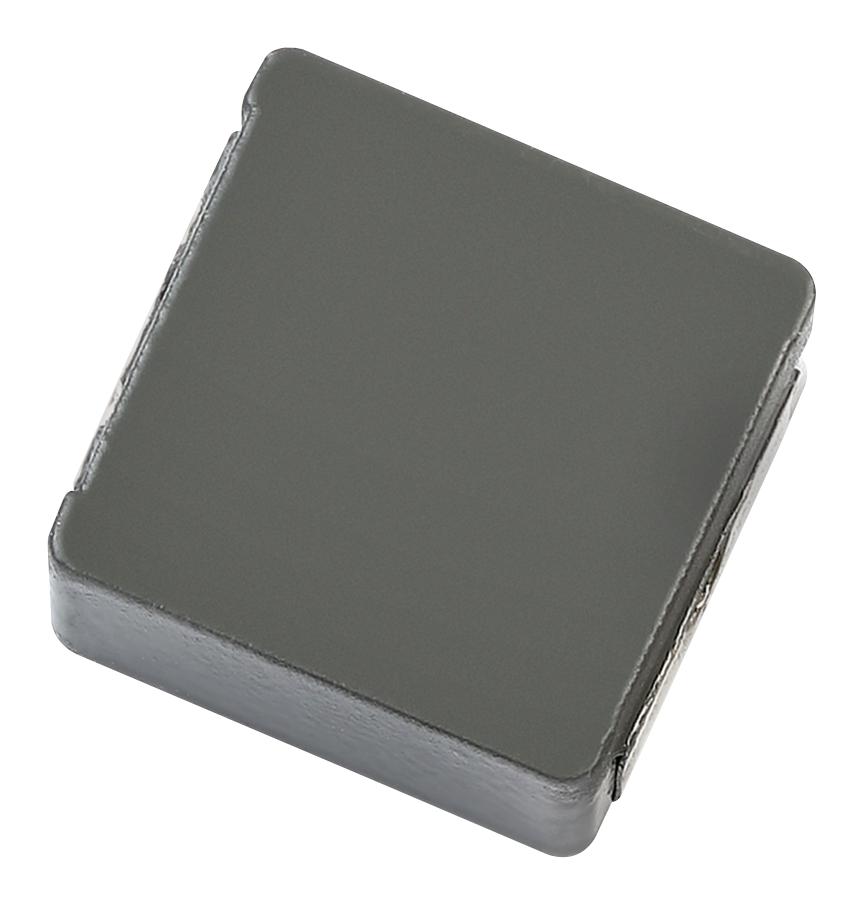

Eaton Electronics HCM1A1305R47R Power Inductor
The HCM1A1305R47R is an automotive-grade high current power inductor designed for demanding electronic applications. It features magnetic shielding to reduce EMI, support for frequencies up to 1 MHz, and inductance values from 0.1 to 33 microhenries. Capable of handling currents from 3.5 A to 80 A, it is compliant with AEC-Q200 Grade 1 standards, ensuring reliability in automotive environments. Its compact surface-mount package measures 13.8 mm x 12.5 mm with a height of 5 mm, making it ideal for vehicle electronics, HVAC, safety systems, and infotainment modules.
Eaton Electronics HCM1A1305R47R Power Inductor Specifications:
- Inductance: 0.47 μH ±20%
- DCR: 0.30 mo (typ), 0.36 mo (max)
- Current range: 3.5 A to 80 A
- Frequency range: up to 1 MHz
- Package dimensions: 13.8 mm x 12.5 mm x 5.0 mm
- Magnetically shielded, low EMI
- AEC-Q200 Grade 1 qualified
- Materials: Alloy powder core, halogen free, lead free
- Storage temperature: -55°C to +155°C
- Operating temperature: -55°C to +155°C
- Moisture Sensitivity Level: 1
Buy the Buy Eaton HCM1A1305R47R Part Number HCM1A1305R47R Online
Purchase the Eaton power inductor HCM1A1305R47R online for reliable high current performance in automotive systems. This surface-mount component supports frequencies up to 1 MHz, handles currents from 3.5 A to 80 A, and features a magnetic shield to reduce EMI. Its compact 13.8 mm x 12.5 mm footprint makes it ideal for vehicle electronics, HVAC, safety systems, and infotainment applications. RoHS compliant and AEC-Q200 Grade 1 qualified, ensuring durability and quality for demanding automotive environments.
Get Eaton HCM1A1305R47R today—built for high current applications and automotive reliability.
