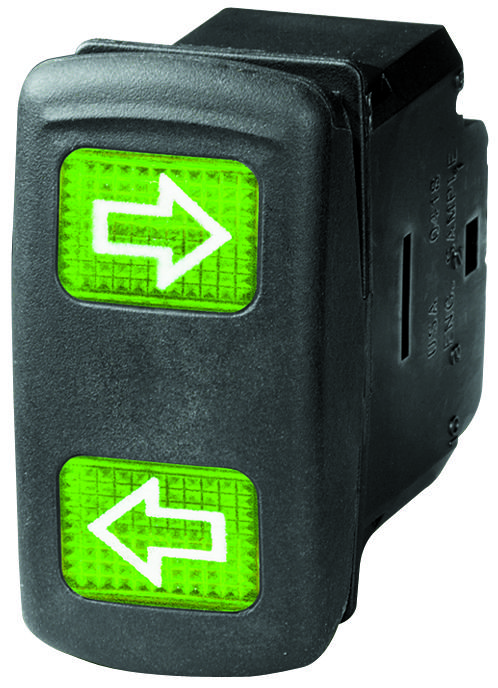

Eaton Electronics SFAMXXCXXXXXXXX Sealed Vehicle Switch
The SVR series Sealed Vehicle Rocker Switch from Eaton is engineered for harsh environments in construction and agricultural vehicles, providing IP68 sealing against dust and water. Its compact, snap-in design simplifies installation without tools, accommodating panel thicknesses from 1.0 to 4.0 mm. Available in single- and double-pole configurations with 2- or 3-position circuits, it supports momentary and maintained operations. Terminals are 2.8mm tin-plated copper spades, and the switch's sealed contact chamber ensures high durability. Multiple actuator styles, including above and below panel, and paddle, offer versatile control options, with standard black matte finish and optional colors. Backlighting supports LEDs, enhancing visibility in low light conditions, making it ideal for demanding control panel applications.
Eaton Electronics SFAMXXCXXXXXXXX Sealed Vehicle Switch Specifications:
- Sealing: IP68 dust and water resistance
- Panel Thickness: 1.0 to 4.0 mm, optimal between 1.5 to 3.0 mm
- Electrical Life: 50,000 operations at 12/24 Vdc, gold plating up to 250,000 cycles
- Mechanical Life: 250,000 maintained; 50,000 momentary operations
- Dielectric Strength: 1500 volts rms minimum
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Actuator Styles: above panel, below panel, paddle
- Terminals: 2.8 mm tin-plated copper spade
- Circuit Options: 1- or 2-pole, 2- or 3-position, momentary and maintained
- Standard Mounting Hole: 36.8 x 21.1 mm (1.45 x 0.83 inches)
- Materials: UL 94 V-0 and UL 94 H-B rated plastics
- LED Compatibility: Up to two LEDs, standard amber, other colors available
- Backlighting: laser-etched icons with daylight white or deadfront styles
- Additional Sealing: AMP wire seals, panel sealing accessories available
Buy the Eaton SVR – Reliable Sealed Vehicle Switch for Industrial Applications
Purchase the Eaton Sealed Vehicle Switch online today to ensure reliable and durable control for construction and agricultural vehicles. Designed for harsh environments, it offers dust and water resistance, simple snap-in mounting, versatile actuator options, and backlit LEDs for visibility. With multiple configurations supporting different circuit types and sealing accessories, this switch provides outstanding performance and ease of installation. Secure yours now and enhance your control systems with Eaton’s dependable electrical components, ideal for demanding industrial applications worldwide.
Order your Eaton Series SVR sealed vehicle rocker switch today and ensure robust performance in demanding industrial and vehicle control panels.
