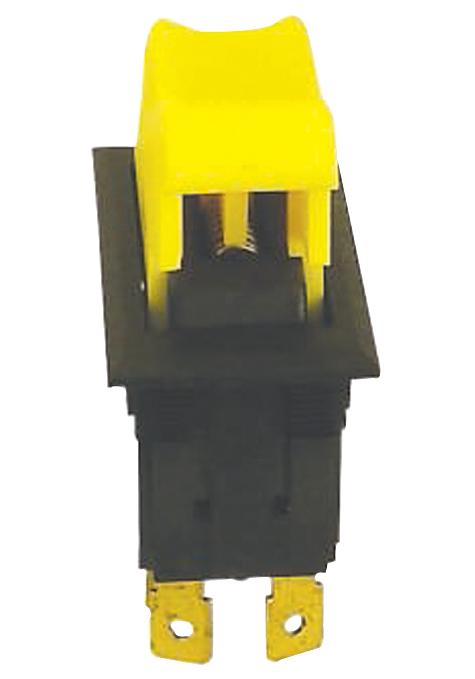

Eaton Electronics SM4MLLFAXXAXXXX Sealed Vehicle Switch
The Eaton Sealed Vehicle Rocker switch (SVR) is designed for severe environmental conditions, offering sealed contact chambers with IP68 protection, suitable for construction and agricultural vehicles. It features a compact footprint and snap-in mounting for easy installation without tools. Available in single- and double-pole configurations with 2- and 3-position options, including momentary and maintained circuit types. Supports LED backlighting with various colors, and can be sealed at the back end with compatible terminals and wire seals for enhanced water resistance. Its rugged construction ensures reliable operation across wide temperature ranges, making it ideal for demanding industrial use.
Eaton Electronics SM4MLLFAXXAXXXX Sealed Vehicle Switch Specifications:
- Electrical Life: 50,000 operations at 12 or 24 Vdc (standard plating), 250,000 operations (gold plating)
- Mechanical Life: Maintained circuits - 250,000 operations; Momentary circuits - 50,000 operations
- Dielectric Strength: 1500 volts rms minimum
- Operate Force: 4.4—13.2 N (1-3 lbs.) depending on circuit and actuator
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Panel Thickness: 1.0 to 4.0 mm (best 1.5 to 3.0 mm)
- Seal: IP68 rated sealed contact chamber; wire seals available for sealing back end
- Terminals: 2.8 mm tin-plated copper alloy spade terminals, compatible with AMP Junior Power Timer
- Mounting: Snap-in with flexible plastic retainers, panel cutout 36.8 x 21.1 mm
- Actuator Styles: Above panel rocker, below panel rocker, paddle switch
- Backlighting: Up to 2 LEDs, standard amber, red, green, blue, voltages 12 and 24 Vdc
- Electrical Circuits: 1- or 2-pole, 2- or 3-position, momentary and maintained, various circuit options
Buy the Buy Eaton SVR Switch Part Number SM4MLLFAXXAXXXX Online
Purchase the Eaton Sealed Vehicle Rocker switch SM4MLLFAXXAXXXX online today. Designed for severe environments, it offers IP68 sealing, compact size, snap-in mounting, LED backlighting, and reliable performance under demanding industrial conditions. With versatile circuit options, multiple actuator styles, and robust construction, this switch ensures dependable operation in construction, agriculture, and industrial applications. Order now to benefit from quick delivery and technical support, ensuring your equipment stays protected and functional in the toughest environments.
Get Eaton SVR switch SM4MLLFAXXAXXXX today—built for precision and long-lasting durability in harsh environments.
