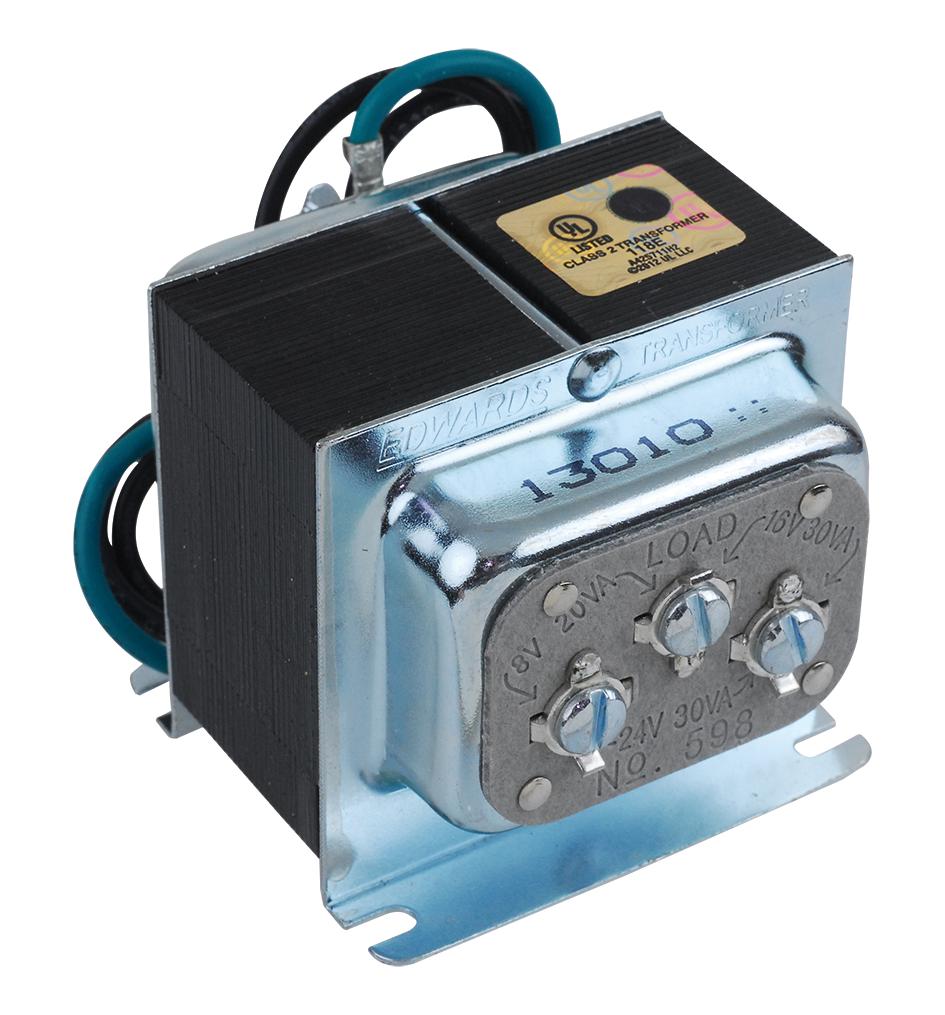

Edwards Signaling 598 Low-Voltage Signaling Transformer
The 598 is a Class 2 signaling low-voltage transformer designed for versatile mounting options, including mounting in plastic or metal back boxes. It can be installed through a standard 1/2-inch knockout, surface-mounted with provided foot mounts, or combined with the Cat. No. 593 transformer plate for enclosed installation in a standard two-gang outlet box. This transformer provides high power output suitable for long wire runs or applications requiring greater power, such as door openers. It is ideal for use in large apartments and building elevators. Features include non-regenerative thermal overload protection, a grounding wire, pre-stripped pigtails, and screw terminal connections on the secondary.
Edwards Signaling 598 Low-Voltage Signaling Transformer Specifications:
- Power Rating: 16V AC, 30 VA
- Input Voltage: 120V AC
- Output Voltage: 16V AC
- Mounting Options: 1/2" knockout, surface mount, enclosed with transformer plate
- Protection: Non-regenerative thermal overload protection
- Terminals: Screw terminal connections on secondary
- Features: Grounding wire, pre-stripped pigtails
- Size: Approximate dimensions 2 1/8 x 1 5/8 x 1 1/4 inches
- Weight: 1.5 lbs
- Applications: Door openers, elevators, long wiring runs
- Frequency: 50/60 Hz
Buy the Edwards Series 598 Transformer: 16V AC 30 VA
Purchase the Edwards 598 low-voltage transformer online today for reliable power supply in door openers, elevators, or long wiring runs. Its versatile mounting options include standard knockout installation, surface mounting, or enclosed use with the transformer plate. Designed with safety features like thermal overload protection, grounding wire, pre-stripped pigtails, and screw terminal connections, it offers convenient installation and long-lasting durability. Perfect for residential and commercial applications needing increased power, this transformer ensures efficient operation and peace of mind when bought online.
Get Edwards 598 transformer today—built for high power applications and reliable long-lasting performance.
Frequently Asked Questions
Where can I buy Edwards Signaling 598?
You can click on the BUY or RFQ button to purchase 598 from an authorized Edwards Signaling distributor.
How do I troubleshoot issues or seek technical support for part 598?
You can download the 598 datasheet or visit the Edwards Signaling website for support.
Who is the manufacturer of 598?
Edwards Signaling
