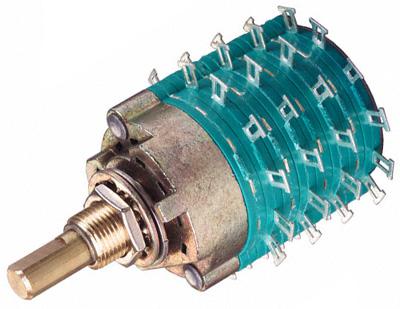

ELECTROSWITCH C4D0312NA rotary switch
The C4D0312NA is a three-pole, twelve-throw rotary switch with diallyl phthalate insulation. It features brass contacts and silver-plated terminals for enhanced conductivity. Designed with a fully enclosed structure, it effectively protects against dirt and moisture while maintaining lifetime lubrication. The switch includes mounting hardware such as a nut and lock washer, ensuring secure installation. It is ideal for industrial applications requiring reliable switching performance in harsh environments, with a minimum operational life of 25,000 cycles, and rated for 0.5 amp at 28 VDC and 0.3 amp at 125 VAC.
ELECTROSWITCH C4D0312NA rotary switch Specifications:
- Electrical: 0.5 amp @ 28 VDC; 0.3 amp @ 125 VAC; Current Carrying Capacity: 15 amps; Dielectric Strength: 1,000 VAC; Contact Resistance: 3 millichms; Insulation Resistance: >10,000 megohms.
- Mechanical: Fully enclosed, protects against dirt and moisture; Materials: Brass with silver plating; Hardware: Includes mounting nut and lock washer; Life: Minimum 25,000 cycles; Index: 30°, 36°, 45°, 60°, and 90° options; Index Stops: Fixed, adjustable, or continuous; Stop Strength: ≥15 in. lbs.
- Physical: Diameter: 1.5 inches; Pole/Throw configuration: 3P12T; Finish: Non-corrosive materials; Thermal ratings and additional optional configurations available.
- Dimensions and Mounting: Standard mounting hardware included; Suitable for industrial panels requiring reliable rotary switching.
- Additional features: Fully enclosed design with IP67 rating option, ensuring dust and moisture resistance.
Buy the Electro Switch C4D0312NA – Reliable Rotary Switch for Industrial Applications
Purchase the Electro Switch C4D0312NA online today for dependable rotary switching in industrial settings. With a fully enclosed design, brass contacts, and silver plating, this switch offers excellent durability and resistance to dirt and moisture. It supports multiple configurations, including 12-throw operation, and features a highly reliable mechanical structure rated for 25,000 cycles. Ideal for control panels, machinery, and automation systems, this switch ensures precise operation and long-term performance in demanding applications. Shop now for fast, secure online ordering.
Get Electro Switch C4D0312NA today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy ELECTROSWITCH C4D0312NA?
You can click on the BUY or RFQ button to purchase C4D0312NA from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part C4D0312NA?
You can download the C4D0312NA datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of C4D0312NA?
ELECTROSWITCH
