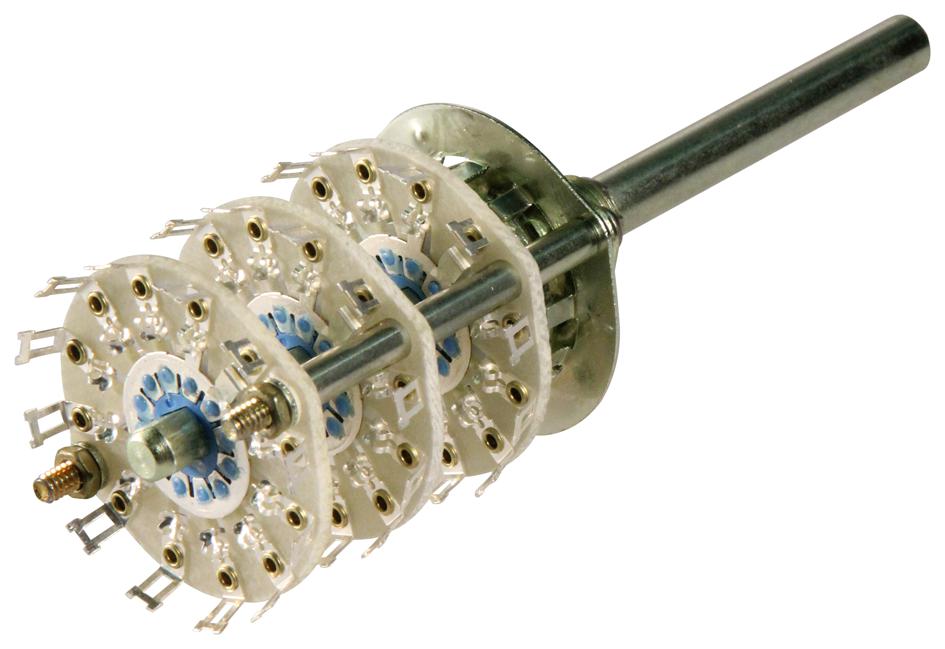

ELECTROSWITCH D4G0311N Rotary Switch
The D4 series is the most versatile open-frame rotary switch in our lineup. It features a high-quality ball and spring index mechanism and is available with up to 12 positions, offering either 30° or 60° indexing. The switch provides low practical torque while ensuring crisp detenting and smooth, reliable operation. It has a minimum cycle life of 25,000 operations and is suitable for industrial applications. Made with durable materials like brass with silver plating, glass epoxy, ceramic, or diallyl phthalate, it delivers excellent electrical and mechanical performance.
ELECTROSWITCH D4G0311N Rotary Switch Specifications:
- Diameter: 1.437 inches
- Current Rating: 1.5 amps at 28 VDC, 0.5 amps at 115 VAC
- Current Carrying Capacity: 9 amps
- Dielectric Strength: 1,500 VAC between current carrying parts and round
- Contact Resistance: 3.5 milliohms (initial)
- Insulation Resistance: Glass epoxy >750,000 megohms, ceramic >1,000,000 megohms, diallyl >900,000 megohms
- Materials: Brass with silver plate, glass epoxy, ceramic, diallyl phthalate
- Index Type: Single-ball, hill and valley
- Index Life: Minimum 25,000 cycles
- Index Torque: Low, ensuring crisp detent
- Index Angles: Standard 30°, available 60°
- Stops: Adjustable standard, fixed or continuous
- Stop Strength: Minimum 10 in. lbs.
- Construction: Open frame, durable materials for industrial use
- Operating Temperature: Suitable for industrial environments
Buy the Buy Open Frame Rotary Switch Part Number D4G0311N Online
Secure the advanced D4 series rotary switch online today. Designed for durability, it features up to 12 positions, 25,000 cycles, and options for 30° or 60° indexing, making it ideal for industrial equipment. With high-quality materials like brass with silver plating, durable insulating substances, and a reliable ball and spring mechanism, this switch offers smooth operation, minimal torque, and long cycle life. Order now to enhance your control system’s reliability and efficiency in demanding environments.
Buy Electro Switch D4G0311N now and experience unmatched reliability and performance for industrial rotary switching applications.
Frequently Asked Questions
Where can I buy ELECTROSWITCH D4G0311N?
You can click on the BUY or RFQ button to purchase D4G0311N from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part D4G0311N?
You can download the D4G0311N datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of D4G0311N?
ELECTROSWITCH
