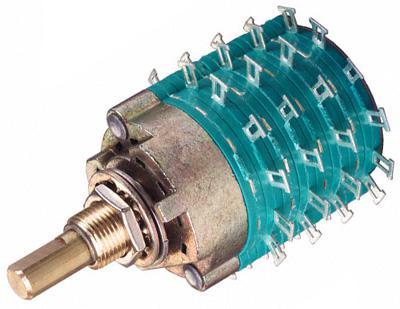

ELECTROSWITCH C4D0806NA rotary switch
The C4D0806N-A is an eight-pole, six-throw rotary switch with diallyl phthalate insulation, featuring brass terminals and silver-plated contacts for durability. The C4 Series provides a fully enclosed, versatile design that safeguards against dust and moisture while retaining sealed lubrication for long-term reliability. It includes mounting nut and lockwasher hardware, making it suitable for industrial and automation applications. With robust construction and high electrical ratings, this switch ensures crisp detenting and reliable operation through extensive cycles, ideal for complex control systems requiring multiple position selections.
ELECTROSWITCH C4D0806NA rotary switch Specifications:
- Current and Voltage Rating: 0.5 amp @ 28 VDC; 0.3 amp @ 125 VAC
- Current Carrying Capacity: 15 amps
- Dielectric Strength: 1,000 VAC between parts and ground
- Contact Resistance: Average initial 3 milliohms
- Insulation Resistance: >10,000 Megohms
- Materials: Brass with silver plating, non-corrosive parts
- Index: 25,000 cycles minimum
- Index Angles: Standard 30°, options 36°, 45°, 60°, 90°
- Housing: Fully enclosed, IP67 rating available
- Hardware: Mounting nut and lockwasher included
Buy the Electroswitch Series C4 Rotary Switch: C4D0806N-A
Purchase the Electroswitch C4D0806N-A rotary switch online today and benefit from its robust construction, sealing against dust and moisture, and long-lasting durability. Ideal for complex industrial control applications, this switch offers high electrical ratings, multiple positions, and certified IP67 protection. Built with durable brass contacts and silver plating, it ensures reliable operation over extensive cycles. Enjoy quick, secure online ordering and enhance your automation setup with this versatile, fully enclosed rotary switch designed for demanding environments.
Buy Electroswitch C4D0806N-A now and experience unmatched reliability and performance in industrial automation and control systems.
Frequently Asked Questions
Where can I buy ELECTROSWITCH C4D0806NA?
You can click on the BUY or RFQ button to purchase C4D0806NA from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part C4D0806NA?
You can download the C4D0806NA datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of C4D0806NA?
ELECTROSWITCH
