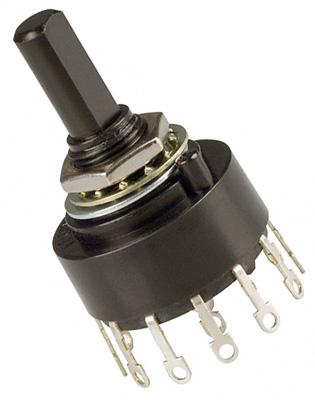

ELECTROSWITCH C5P0112NA Rotary Switch
The C5P0112N-A is a single-pole twelve-throw rotary switch with polyester insulation and brass contacts with silver plating. Part of the C5 series, it offers an economical, lightweight design with 30° indexing for up to 12 positions. Features include solder lug terminals, fixed stops, and internal and external seals for washability. It comes with mounting hardware, making it ideal for industrial settings requiring reliable switching performance and excellent durability. This switch supports resistive loads up to 1 amp at 28 VDC, ensuring dependable operation across various control systems.
ELECTROSWITCH C5P0112NA Rotary Switch Specifications:
- Current and Voltage Rating: 1 amp @ 28 VDC; 1 amp @ 125 VAC
- Current Carrying Capacity: 5 amps
- Dielectric Strength: 1,000 VAC between current carrying parts and round
- Contact Resistance: Average initial 20 milliohms
- Insulation Resistance: Over 10,000 megohms
- Materials: Brass contacts with silver plate, polyester insulation
- Index: 30° indexing, fixed stops, operates for a minimum of 10,000 cycles
- Index Torque: Low, for smooth operation, ± standard torque
- Mounting: Hardware includes mounting nut and lockwasher
- Size: 0.92 inches diameter, 0.375 inches panel cutout
- Terminals: Solder lug
- Environmental Seals: Internal and external seals for washability
- Application: Suitable for industrial control, automation, and machinery with resistive loads
Buy the ElectroSwitch Series C5 Rotary Switch: C5P0112NA
Discover the high-quality ElectroSwitch Series C5P0112NA rotary switch, an ideal choice for industrial controls needing durability and precision. Featuring a 12-position, sealed design, and solder lug terminals, it provides robust performance and easy installation. With a 30° indexing angle and a compact 0.92-inch diameter, this switch supports resistive loads up to 1 amp at 28 VDC, making it perfect for automation, machinery, and control panel applications. Buy online now and ensure reliable switching in your projects with fast delivery and excellent support.
Order your ElectroSwitch Series C5P0112NA rotary switch today and give your industrial control projects the reliable, sealed switching performance they deserve.
Frequently Asked Questions
Where can I buy ELECTROSWITCH C5P0112NA?
You can click on the BUY or RFQ button to purchase C5P0112NA from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part C5P0112NA?
You can download the C5P0112NA datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of C5P0112NA?
ELECTROSWITCH
