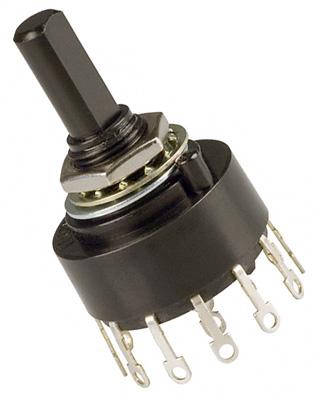

ELECTROSWITCH C5P0304NA Rotary Switch
The C5P0304N-A rotary switch features a three-pole, four-throw configuration with polyester insulation, brass contacts, and silver-plated terminals. It offers reliable switching with 30° indexing up to four positions, solder lug terminals, fixed stops, and sealed construction for washability. Designed for industrial environments, this lightweight and economical switch includes mounting hardware and standard features like internal and external sealing. Suitable for automation, control systems, and machinery requiring precise multi-position switching, offering durable performance in demanding industrial settings.
ELECTROSWITCH C5P0304NA Rotary Switch Specifications:
- Current and Voltage Rating: 1 amp @ 28 VDC; 1 amp @ 125 VAC
- Current Carrying Capacity: 5 amps
- Dielectric Strength: 1,000 VAC between current carrying parts and round
- Contact Resistance: Initial 20 milliohms
- Insulation Resistance: Over 10,000 megohms
- Material: Brass contacts, silver plating, polyester insulation
- Index: 30° with fixed stops, up to 4 positions
- Index Life: Minimum 10,000 cycles
- Index Torque: Low, for reliable detent
- Mounting Hardware: Nut and lockwasher included
- Seal: Internal and external seals for washability
- Dimensions: Diameter 0.92 inches, Panel cutout 0.375 inches, Shaft length 0.375 inches
- Operating Environment: Suitable for industrial environments with sealed construction
Buy the Electroswitch C5P0304N-A – Reliable Rotary Switch for Industrial Applications
Order the Electroswitch C5P0304N-A rotary switch online today and enjoy reliable, sealed operation suitable for industrial automation and control needs. With a compact design and robust construction including polyester insulation, brass contacts, and silver plating, this switch ensures excellent performance in demanding environments. Its 30° indexing with four positions provides flexibility for various circuit control applications. Easily install the included hardware, and benefit from sealed construction for washability and durability. Perfect for automation projects or machinery requiring precise multi-position switching, this switch is a trusted choice for industry professionals.
Buy Electroswitch C5P0304N-A now and experience durable performance with sealed construction and precise 30° indexing for industrial control systems.
