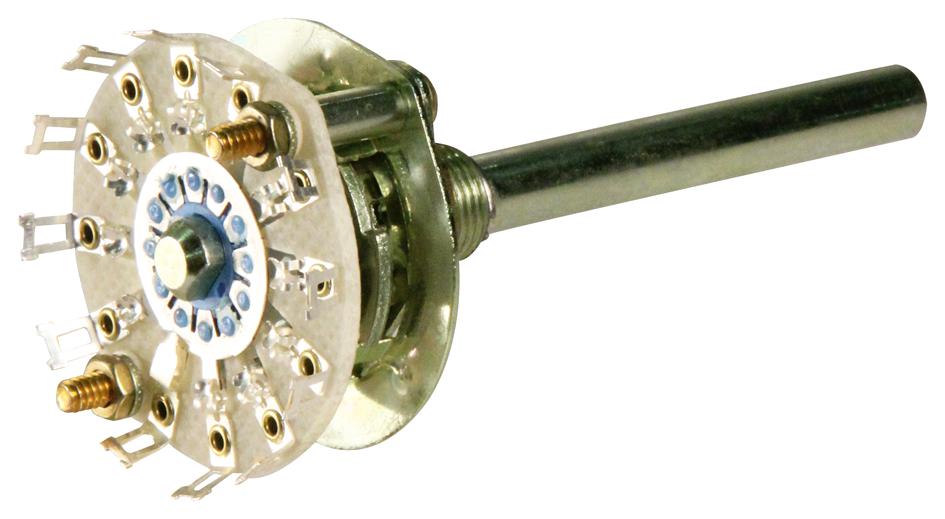

ELECTROSWITCH D4G0111N rotary switch
The D4 series is a versatile open frame rotary switch featuring a quality ball and spring index mechanism. It offers up to 12 positions with 30° or 60° indexing, providing crisp detenting and smooth, reliable operation with minimal torque. It has a minimum index life of 25,000 cycles. Suitable for industrial applications.
ELECTROSWITCH D4G0111N rotary switch Specifications:
- Current Rating: 1.5 amps at 28 VDC; 0.5 amp at 115 VAC
- Current Carrying Capacity: 9 amps
- Dielectric Strength: 1,500 VAC between current carrying parts and round
- Contact Resistance: Initial 3.5 milliohms
- Insulation Resistance: Glass epoxy in excess of 750,000 megohms; Ceramic in excess of 1,000,000 megohms; Diallyl in excess of 900,000 megohms
- Materials: Brass with silver plate, glass epoxy, ceramic, or diallyl phthalate insulation materials
- Index: Single-ball, hill and valley with a minimum life of 25,000 cycles
- Index Torque: Low, for reliable detent operation
- Index Angles: Positive 30°, available for 60°
- Mounting: Threaded surface with 3/8-32 thread, mounting nut and lockwasher included
- Dimensions: 9.25 inches length, engagement 0.080 inches, diameter 1.437 inches
- Mechanical Stops: Adjustable standard, fixed or continuous stops options
- Electrical Contacts: Brass with silver plating, suitable for resistive loads
- Standards: UL listed and CSA certified
- Construction: Glass epoxy, ceramic, or diallyl Phthalate insulation
Buy the Electroswitch D4G0111N – Reliable Rotary Switch for Industrial Applications
Purchase the Electroswitch D4G0111N series rotary switch online today for dependable quality and versatile performance. Designed with a robust ball and spring index mechanism, it provides smooth operation with up to 12 positions at 30° or 60° indexing. Ideal for industrial applications requiring durable, high-quality switches, this product features a minimum index life of 25,000 cycles, low torque, and compliant with UL and CSA standards. Secure your supply now for reliable control and long-term service life.
Order your Electroswitch D4G0111N series open frame rotary switch today and ensure reliable, long-lasting performance for your industrial projects.
Frequently Asked Questions
Where can I buy ELECTROSWITCH D4G0111N?
You can click on the BUY or RFQ button to purchase D4G0111N from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part D4G0111N?
You can download the D4G0111N datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of D4G0111N?
ELECTROSWITCH
