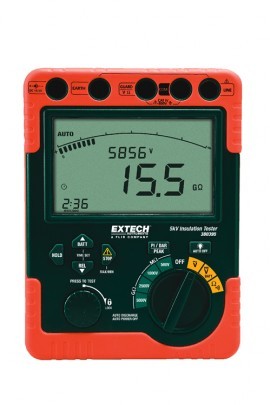

EXTECH 380395NIST High Voltage Insulation Tester
The Extech 380395-NIST high voltage insulation tester offers precise measurements with test voltages of 500V, 1000V, 2500V, and 5000V, enabling insulation resistance testing up to 60 GΩ. It features polarization index and dielectric absorption ratio measurements, along with resistance and AC/DC voltage testing up to 600V, incorporating Max/Min, Peak, and Relative functions. The device has a large backlit display, auto-discharge, warning indicators for high voltage, and timers from 1 to 15 minutes. Designed for safety and accuracy, it comes with test leads, batteries, AC adapter, and sturdy case, suitable for electrical maintenance and testing applications.
EXTECH 380395NIST High Voltage Insulation Tester Specifications:
- Test Voltage: 500V/1000V/2500V/5000V
- Insulation Resistance Range: 0 to 60 GΩ
- Accuracy: ±2.5% of reading
- AC/DC Voltage Range: 0 to 600V
- Resistance Measurement: 0 to 6000Ω
- AC/DC Voltage Accuracy: ±1% of reading
- Display: Large 6000 count backlit with bargraph
- Power: Eight C batteries
- Dimensions: 7.8 x 5.8 x 3.4 inches (198 x 148 x 86 mm)
- Weight: 3.2 lbs (1.45 kg)
- Features: Auto-discharge, high voltage warning, timer 1-15 min, polarization index, dielectric absorption ratio
Buy the Extech 380395-NIST – Reliable High Voltage Insulation Tester for Industrial Applications
Order the Extech 380395-NIST insulation resistance tester online today to ensure accurate, safe, and efficient electrical testing. Featuring high voltage measurement up to 5000V, resistance testing up to 60 GΩ, and advanced features like PI and DAR, this device is ideal for electrical professionals. The large backlit display, auto-discharge, and warning features improve safety and usability. Complete with test leads, batteries, AC adapter, and carrying case, it offers reliable performance for maintenance, testing, and troubleshooting in industrial and electrical environments. Purchase now for unmatched quality and precision.
Buy Extech 380395-NIST now and experience unmatched accuracy and safety in electrical insulation testing.
