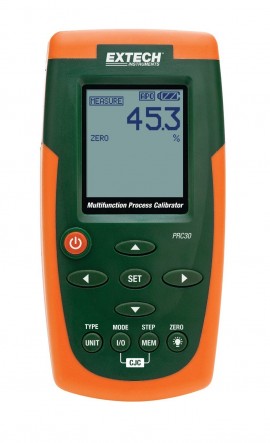

EXTECH PRC30NIST Process Calibrator
The Extech PRC30-NIST is a portable process calibrator designed for precise thermocouple and current loop calibration, featuring a large backlit LCD, multiple thermocouple types, and high-accuracy signals. It supports up to five user presets, provides 0-24 mA and 0-20 V output measurements, and includes a 24V DC power source for two-wire loops. Ideal for lab and field calibration, it offers zero adjustment, auto zero, and mode switching. Equipped with standard banana ports, a mini thermocouple connector, and extended battery capacity, it is perfect for troubleshooting, research, and temperature control applications.
EXTECH PRC30NIST Process Calibrator Specifications:
- Measures DC process signals including 0 to 24mA, 0 to 20V, and thermocouple types J, K, T, E, C, R, S, N
- Supports five user-adjustable calibration presets
- Displays readings in millivolts, temperature, or process units
- Large backlit LCD for clear visibility
- 24V Loop Power supply for two-wire current loop calibration
- Zero adjustment with auto zero function at power on
- Standard banana ports and mini thermocouple connector
- Physical dimensions: 6.3" x 3.2" x 1.7" (159 x 80 x 44 mm)
- Weight: 8.4 oz (236 g) excluding batteries
- Includes test leads, alligator clips, thermocouple, external power adapter, calibration cable, batteries, and carrying case.
- Supports multiple thermocouple types with temperature ranges from -58°F to 2498°F with ±0.05% accuracy
Buy the Extech PRC30-NIST – Reliable Process Calibrator for Industrial Applications
Enhance your calibration capabilities with the Extech PRC30-NIST, a portable and highly accurate process calibrator suitable for lab and field use. It measures thermocouples and current signals, provides multiple preset configurations, and features a large backlit LCD for easy operation. The device includes essential accessories like test leads, thermocouples, and an external power supply, making it ideal for troubleshooting, research, and temperature control applications. Reliable and easy to use, it delivers precision calibration results every time.
Order your Extech PRC30-NIST portable process calibrator today and ensure precise thermocouple and loop calibration for your industrial projects.
